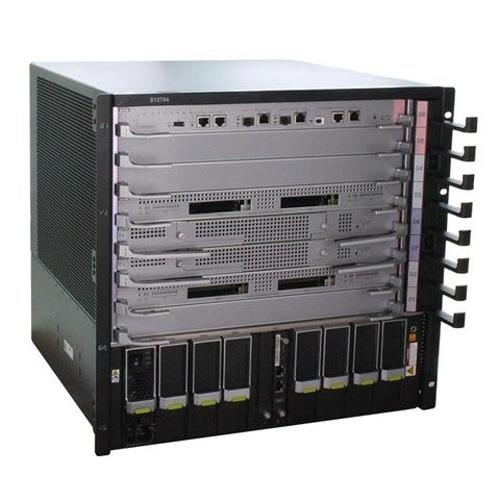

S12704 Core Ethernet Network Switch
Short Description:
| Specifications | |
| S12704 | |
| S12708 | S12712 |
| Switching Capacity | |
| 4.88/10.96 Tbit/s | |
| 12.32/27.04 Tbit/s | 17.44/37.28 Tbit/s |
| Packet Forwarding Rate | |
| 3,120/4,560 Mpps | |
| 6,240/9,120 Mpps | 9,120/12,960 Mpps |
| MPU Slots | |
| 2 | |
| 2 | 2 |
| SFU Slots | |
| 2 | |
| 4 | 4 |
| Service Card Slots | |
| 4 | |
| 8 | 12 |
| CSS2 | 1+N MPU backup in a cluster Up to 1.92 Tbit/s cluster bandwidth, 4 us inter-chassis transmission latency |
| Wireless Network Management | Native AC AP access control, AP region management, and AP profile management Radio profile management, unified static configuration, and centralized dynamic management Basic WLAN services, QoS, security, and user management |
| User Management | Unified user management 802.1x, MAC, and Portal authentication Charging based on traffic volume and online duration User authorization based on user groups, domains, and time ranges |
| iPCA | Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks |
| SVF | Up to 4K clients (access switches and APs) virtualized into a single device 2-level AS structure Unified management on HW and non-HW devices |
| OpenFlow | Supports multiple controllers. Supports multi-level flow tables. Supports group tables. Supports meter tables. Confirms to Open Flow 1.3 standards. |
| Interoperability | VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) For detailed interoperability certifications and test reports, click HERE. |
