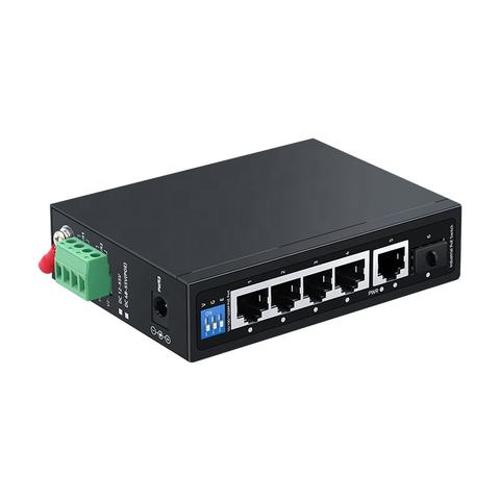

Industrial POE Switch, Gigabit 6 Port Switch 1000M RJ45 Port 1 Gigabit SFP Port DIN Rail Network POE Switch Lightning Protection
Short Description:
| Power | DC 48-55V |
| Ethernet Port | 4* Gigabit PoE Ports1* Gigabit Uplink port1* Gigabit SFP Port |
| Bandwidth | 12Gbps |
| PackageForwarding Rate | 8.928Mpps |
| MAC Address | 8K |
| Jumbo frame | 9.6Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 HOURS |
| Network Protocols | IEEE802.3IEEE802.3iIEEE802.3uIEEE802.3abIEEE802.3z |
| POE protocol | PoE standard: IEEE802.3af /IEEE802.3atSingle port max: 15.4 W (IEEE 802.3af)Single port max: 30 W (IEEE 802.3at)PoE compatibility: IEEE 802.3af/at self-adaptivePoE port output voltage: DC 48-55VPoE power supply wire core:1/2+ ; 3/6- |
| Network Media | 10BASE-T: Cat5 or more UTP(≤100 m)100BASE-TX: Cat5 or more UTP(≤100 m)1000BASE-TX: Cat5 or more UTP(≤100 m) |
| Fiber Media | Multi-mode fiber: 850nm, 1310nm transmission distance: 550m/2KmSingle-mode fiber: 1310nm, 1550nm transmission distance:20/40/60/80/100/120km |
| Safety Certificate | CE ,FCC,ROHS |
| WorkingEnvironment | Operating Temperature: -40~75℃Storage Temperature: -40~85℃Humidity: 5%~95 %( non-condensing) |
| LED indicator | PWR,1-6 Green |
| PWR | On: Powered onOff: Powered off |
| 1-6 Green | On: Link normalOff: Link offFlashing: Link data transmitting |
| DIP Function | V,G,E (Up open, down close) |
| V | V: VLAN mode, ports 1 to 4 are isolated and can communicate withports 5 and 6 |
| G | G: Normal mode |
| E | E: Extend mode, ports 1-4 are reduced to 10M and can be extendedto 250m |
| Structure size | Product dimension: 120*87*30 mmPackage dimension: 175*130*55mmProduct N.W: 0.441 KGProduct G.W: 0.530 KG |
| Packing Info | Carton MEAS: 540*290*375mmPacking Qty: 40 PCSPacking Weight: 22.2 KG |
| Voltage | Voltage input: DC48~55VPower cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
| Packing List | 1. Industrial Switch: 1 PC2. User Manual: 1 PC3. Certification: 1 PC4. Pull-arm: 1 PC |
