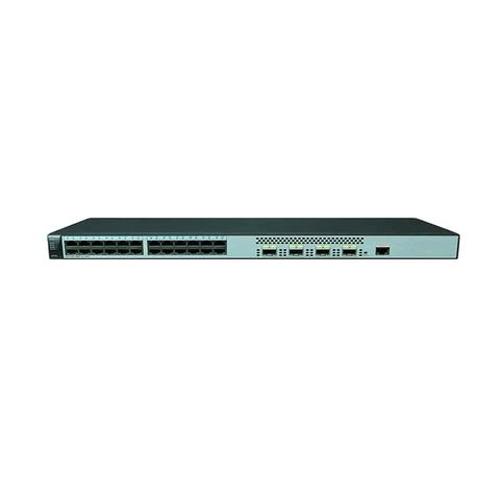

Huawei S1720-20GFR-4TP 16 Ports Fiber Optic Ethernet Switch
Short Description:
| Model | |
| S1720-20GFR-4TP | S1720-28GFR-4TP |
| Downlink Ports | |
| 16 Ethernet 10/100/1,000 ports | 24 Ethernet 10/100/1,000 ports |
| Uplink Ports | |
| 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP | 2 Gig SFP and 2 dual-purpose 10/100/1,000 or SFP |
| MAC Address Table | 16K MAC |
| Routing Features | IPv4 and IPv6 static routing |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Input Voltage | 100V to 240V AC, 50 Hz/60 Hz |
| EEE | Supported |
| Power Consumption | |
| < 20.7W | < 24.3W |
| Operating Temperature | 0 to 1,800m: 0 to 50°C 1,800m to 4,000m: decrease 1°C when the altitude increases every 220m |
| Humidity (non-condensing) | 5% to 95% |
| Heat Dissipation | Fan-free natural heat dissipation |
