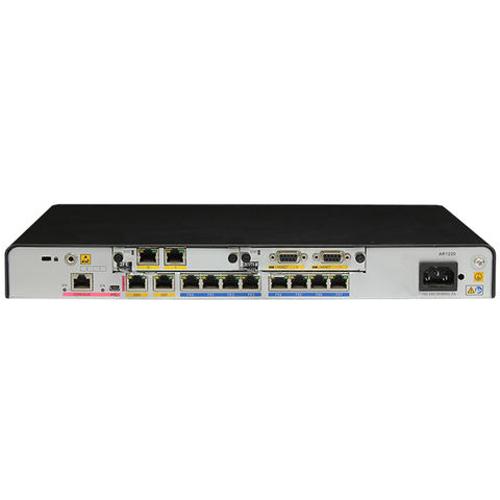

Huawei AR1220E LTE 2km WIFI range wireless router
Short Description:
| WAN speed with services*** | |
| 200 Mbit/s | |
| 400 Mbit/s | 400 Mbit/s |
| Firewall Performance (large packet) | |
| 1,000 Mbit/s | |
| 1,800 Mbit/s | 1,800 Mbit/s |
| Device Switching Capacity | |
| 8 Gbit/s | |
| 8 Gbit/s | 8 Gbit/s |
| Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
| Number of Recommended Users | 100 |
| Fixed WAN Ports | |
| 4 x GE + 1 x GE SFP | |
| 2 x GE Combo | 2 x GE Combo |
| Fixed LAN Ports | |
| 8 x GE (can be configured as WAN interfaces) | |
| 8 x GE (can be configured as WAN interfaces) | 8 x GE (can be configured as WAN interfaces) |
| SIC Slots | |
| 2 | |
| 2 | 2 |
| DSP Slots | |
| - | |
| - | 32 channels supported by default |
| USB 2.0 Ports | |
| 2 | |
| 2 | 2 |
| Mini-USB Ports | |
| 1 | |
| 1 | 1 |
| Memory | |
| 512 MB | |
| 1 GB | 1 GB |
| Flash | |
| 512 MB | |
| 512 MB | 512 MB |
| Max. Power | |
| 25W | |
| 60W | 60W |
| PoE Power | |
| - | |
| - | External 100W |
| AC Power | |
| 100V to 240V | |
| 100V to 240V | 100V to 240V |
| Frequency | |
| 50 Hz/60 Hz | |
| 50 Hz/60 Hz | 50 Hz/60 Hz |
| Dimensions (H x W x D) | |
| 44.5 mm x 390 mm x 220 mm (1.8 in. x 15.4 in. x 8.7 in.) | |
| 44.5 mm x 390 mm x 220 mm (1.8 in. x 15.4 in. x 8.7 in.) | 44.5 mm x 390 mm x 220 mm (1.8 in. x 15.4 in. x 8.7 in.) |
| Weight | |
| 2.9 kg (without interface cards) | |
| 2.9 kg (without interface cards) | 2.9 kg (without interface cards) |
| Ambient Temperature | |
| 0°C to 45°C** | |
| 0°C to 45°C | 0°C to 45°C |
| Relative Humidity | |
| 5% to 95% (non-condensing) | |
| 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
