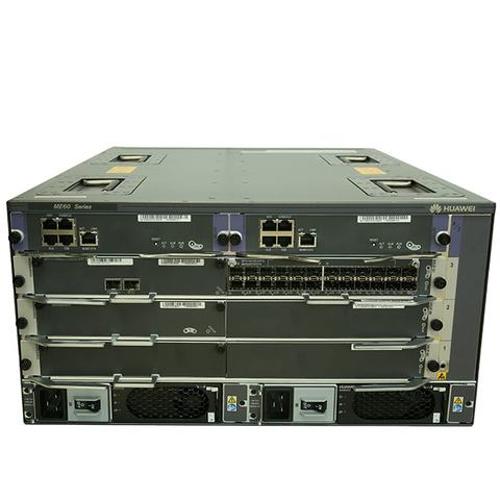

Huawei ME60-X3 BRAS multiple-service control gateway AC chassis Router
Short Description:
| Dimensions (width x depth x height) | DC chassis: 442 mm x 650 mm x 175 mm (17.40 in. x 25.59 in. x 6.89 in.)(chassis main body dimensions) 442 mm x 750 mm x 175 mm (17.40 in. x 29.53 in. x 6.89 in.)(chassis dimensions including the chassis's front and rear assembly and cable racks) AC chassis: AC chassis: 442 mm x 650 mm x 220 mm (17.40 in. x 25.59 in. x 8.66 in.)(chassis main body dimensions) 442 mm x 750 mm x 220 mm (17.40 in. x 29.53 in. x 8.66 in.)(chassis dimensions including the chassis's front and rear assembly and cable racks) |
| Installation | Mounted in an N68E cabinet or a standard 19-inch cabinet |
| Weight (in full configuration) | AC chassis: 46 kg (101.43 lb) (20 G boards) 51 kg (112.46 lb) (40 G boards) 52 kg (114.66 lb) (100 G boards) |
| Typical power consumption | DC chassis: 920W AC chassis: 1070W |
| Heat dissipation | DC chassis: 2982 BTU/hour AC chassis: 3468 BTU/hour |
| MTBF(year) | 37.35 |
| MTTR(hour) | 0.5 |
| Reliability | 0.999998472 |
| Total number of slots | 5 |
| Number of service slots | 3 |
| Forwarding capacity | 300 Mpps |
| Switching capacity | 1.08 Tbit/s (bidirectional) |
| Backplane bandwidth | 1.35 Tbit/s |
| Interface capacity (bidirectional) | 720 Gbit/s (bidirectional) |
| SDRAM | 2-GB on MPU D2 4-GB on MPU D3 |
| Flash | 16 MB |
| CF Card | One 2-GB USB disk on each MPU |
| DC input voltage | |
| Rated voltage | -48 V |
| Maximum voltage range | -38 V to -72 V |
| AC input voltage | |
| Rated voltage | 220 V |
| Maximum voltage range | 90 V to 275 V 175 V to 275 V (recommend) |
| Ambient temperature | |
| Long-term | 0°C to 45°C (32°F to 113°F) |
| Short-term | -5°C to 55°C (23°F to 131°F) Remarks: Limit of the temperature change rate: 30°C (86°F)/hour |
