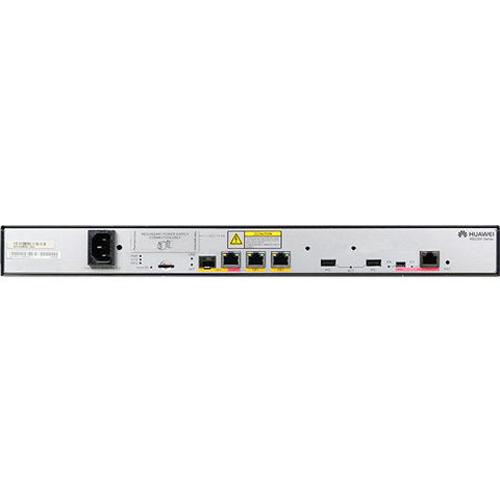

Huawei AR2220E 3 x GE Combo Port Wireless Router
Short Description:
| Specifications | |
| AR2204-27GE/ AR2204-27GE-P | |
| AR2204-51GE-P | AR2204E |
| WAN Speed with Services | |
| 200 Mbit/s | |
| 200 Mbit/s | 200 Mbit/s |
| Fixed WAN Ports | |
| 3 x GE (1 x Combo) | |
| 3 x GE (1 x Combo) | 3 x GE (1 x Combo port) |
| Fixed LAN Ports | |
| 24 x GE/24 x GE (8 x GE ports support PoE) | |
| 48 x GE (8 x GE ports support PoE) | - |
| SIC Slots | |
| 4 | |
| 4 | 4 |
| WSIC Slots (default/max.) | |
| 0 | |
| 0 | 0/2 |
| XSIC Slots (default/max.) | |
| 0 | |
| 0 | 0 |
| Wireless Controller | Wireless Controller is integrated in software |
| Maintenance | |
| All interface cards support hot-swapping U-disk deployment supported | |
| All interface cards support hot-swapping | All interface cards support hot-swapping U-disk deployment supported |
| Memory | |
| 512 MB | |
| 512 MB | 512 MB |
| Flash | |
| 512 MB | |
| 512 MB | 512 MB |
| Hard Disk | |
| - | |
| - | - |
| Power Supply | |
| AC: 100V to 240V, 50 Hz/60 Hz | |
| AC: 100V to 240V, 50 Hz/60 Hz | AC: 100V to 240V, 50 Hz/60 Hz |
| Redundant Power Supply | |
| Internal: AC | |
| Internal: AC | Internal: AC, DC |
| Rack Height | |
| 1 RU | |
| 1 RU | 1 RU |
| Dimensions (H x W x D) | |
| 44.5 mm x 442 mm x 420 mm | |
| 44.5 mm x 442 mm x 420 mm | 44.5 mm x 442 mm x 420 mm |
