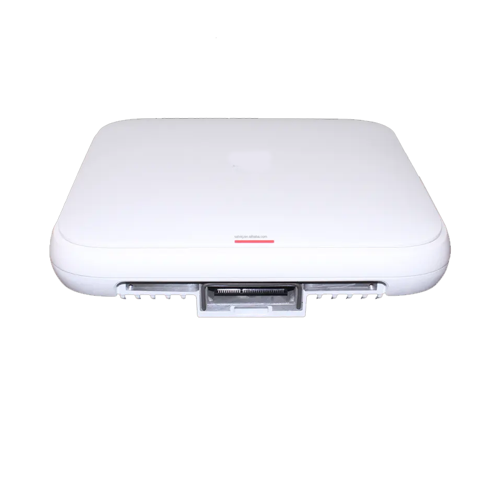

HW AirEngine AP7060DN Wi-Fi 6 (802.11ax) wireless Access Point
Short Description:
| Parameters | AirEngine AP7060DN |
| Dimensions (H x W x D) | 57 x 220 x 220 mm |
| Power Input | DC: 45 V to 57 V |
| PoE: In compliance with IEEE 802.3at | |
| Maximum Power Consumption | 25.4W (excluding output power consumption of the USB interface and IoT) |
| Note: Actual maximum power consumption depends on local laws and regulations. | |
| Built-in Bluetooth | BLE5.0 |
| Antenna Type | Built-in dual-band omnidirectional antennas |
| Maximum Number of Users | ≤ 1024 |
| Note: Actual number of users varies based on the environment. | |
| Maximum Transmit Power | 2.4G: 24 dBm (combined power) |
| 5G: 27 dBm (combined power) | |
| Note: Actual transmit power depends on local laws and regulations. | |
| MIMO: Spatial Streams | 2.4G: 4 x 4:4; 5G: 8 x 8:8 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/11ax |
| Maximum Rate | 6 Gbit/s |
