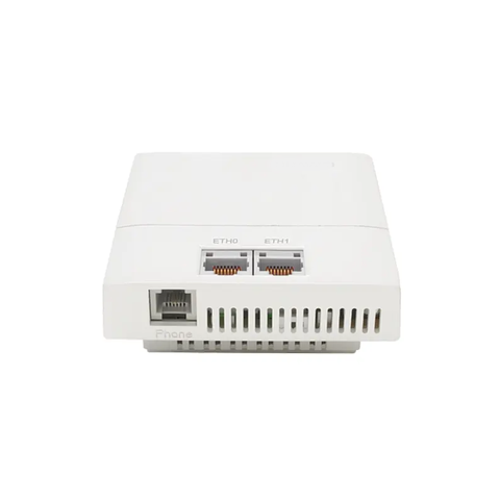

AP2010DN AP2000 Series Access Points
Short Description:
| Main performance | |
| Product Type | Wireless Access Point |
| Network standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11.a |
| Maximum transmission rate | 300Mbps |
| Frequency range | Dual frequency (2.4GHz, 5GHz) |
| Number of channels | 02.11b: 1, 2, 5.5 and 11Mbit/s |
| 802.11a/g: 6, 9, 12, 18, 24, 36, 48 and 54Mbit/s | |
| 802.11n: 6.5-300Mbit/s | |
| Network interface | 1 1000Mbps LAN port |
| Other interfaces | 1 Console port |
| Antenna | |
| Antenna type | Built-in antenna |
| Antenna gain | 2.4GHz: 2dBi |
| 5GHz: 2.5dBi | |
| Other parameters | |
| Status indicator | SYS indicates power, boot loading, running, idle |
| Power supply voltage | PoE power supply: meet 802.3af/at Ethernet power supply standard |
| Power supply | 5.5W |
| Product size | 86×86×45mm |
| Product weight | ≤0.2kg |
| Environmental standards | Working temperature: 0-40℃ |
| Storage temperature: -40-70℃ | |
| Working humidity: 5%-90%RH (non-condensing) | |
| Other properties | Waterproof rating: IP31 |
| Other features | Support the maximum number of users of the whole machine up to 128 |
