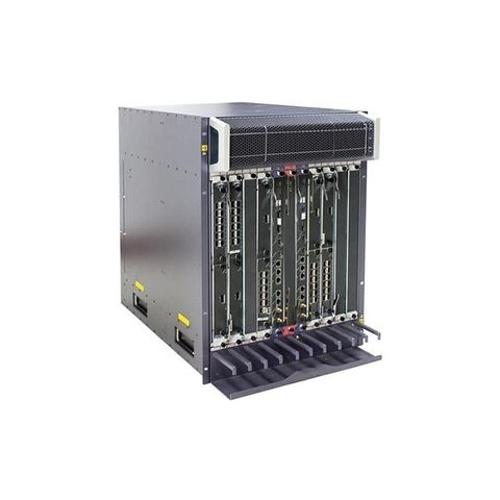

ME60-x8 Multi-service Control Gateway (MSCG) BRAS
Short Description:
| Specifications | |
| ME60-X16 | |
| ME60-X8 | ME60-X3 |
| Switching Capacity | |
| 25.2 Tbit/s | |
| 12.58 Tbit/s | 1.08 Tbit/s |
| Slots | |
| 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs | |
| 11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs | 5 slots, including 2 MPUs (1:1 backup) and 3 LPUs |
| Dimensions (W x D x H) | |
| 442 mm x 650 mm x 1,420 mm (32U) | |
| 442 mm x 650 mm x 620 mm (14U) | 442 mm x 650 mm x 175 mm (DC 4U)442 mm x 650 mm x 220 mm (AC 5U) |
| Maximum Power Consumption | |
| 4,610W (120G)7,970W (240G) | |
| 2,340W (120G)4,100W (240G) | 1,070W (AC)920W (DC) |
| Full Configuration Weight | |
| 246 kg (120G)279 kg (240G) | |
| 119 kg (120G)136 kg (240G) | 42 kg (DC)52 kg (AC) |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1XUser authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACSUser accounting protocol: RADIUS, HWTACACS, and COPSUser authorization protocol: RADIUS, HWTACACS, and COPSPolicy protocol: COPS and COA |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS.The last mile QoS.Multicast replication of IPoE access users |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
