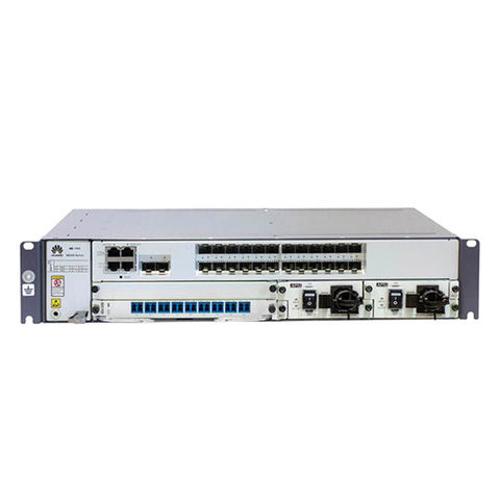

Huawei NE20E-S2E Mini Ethernet Router Large Capacity Load Balance Router
Short Description:
| Dimensions (H x W x D) | |
| 88.1 mm x 220 mm x 442 mm (3.47 in. x 8.66 in. x 8.66 in.)(2U) | |
| 88.1 mm x 220 mm x 442 mm (3.47 in. x 8.66 in. x 8.66 in.)(2U) | |
| Weight (empty) | |
| 2.2 kg (4.85 lb) | |
| 2.2 kg (4.85 lb) | |
| Weight (full configuration) | |
| DC:9.4 kg (20.73 lb) AC:10.4 kg (22.93 lb) | DC:9.5 kg (20.95 lb) AC:10.5 kg (23.15 lb) |
| Cabinet installation standard | |
| ETSI 21-inch; IEC 19-inch | |
| ETSI 21-inch; IEC 19-inch | |
| Typical power consumption | |
| DC:195 W AC:219 W | DC:259 W AC:285 W |
| Typical heat dissipation | |
| DC:632.7 BTU/hour AC:710.5 BTU/hour | DC:840.3 BTU/hour AC:924.7 BTU/hour |
| DC input voltage | |
| input voltage range:-40V to -72V input rated voltage: -48V/-60V | |
| input voltage range:-40V to -72V input rated voltage: -48V/-60V | |
| AC input voltage | |
| input voltage range:180V-264V input rated voltage:200V-240V | |
| input voltage range:180V-264V input rated voltage:200V-240V | |
| MTBF | |
| 59.2 years | |
| 59.2 years | |
| MTTR | |
| 2 hours | |
| 2 hours | |
| Availability | |
| 0.9999996143 | |
| 0.9999996143 | |
| Slot quantity | |
| 2 | |
| 2 | |
| Processing unit | |
| 1.2 GHz | 1.5 GHz |
| Flash | |
| 32 MB | |
| 32 MB | |
| SDRAM | |
| 4 GB | 8 GB |
| Storage | |
| 2 GB | |
| 2 GB | |
| Fixed ports support | |
| 2*10GE (SFP+) + 24*GE (SFP) | 4*10GE (SFP+) + 40*GE (SFP) |
| Redundant MPUs | |
| Unpluggable, no backup | |
| Unpluggable, no backup | |
| Redundant NSPs | |
| Unpluggable, no backup | |
| Unpluggable, no backup | |
| Redundant fans | |
| The device can work properly for a short time at 40ºC if a single fan fails. | |
| The device can work properly for a short time at 40ºC if a single fan fails. | |
| Redundant power supply | |
| 1+1 | |
| 1+1 | |
| Forwarding performance | |
| 70 Mpps | 150 Mpps |
| Switching capacity | |
| 160 Gbps | 320 Gbps |
| Operating temperature | |
| Long-term:DC: -5 °C to 65 °C (23°F to 149°F) AC: 0 °C to 45 °C (32°F to 113°F) Short-term:AC: -5 °C to 55 °C (23°F to 131°F) Remark:Restriction on the temperature variation rate: 30 °C/hour | |
| Long-term:DC: -5 °C to 65 °C (23°F to 149°F) AC: 0 °C to 45 °C (32°F to 113°F) Short-term:AC: -5 °C to 55 °C (23°F to 131°F) Remark:Restriction on the temperature variation rate: 30 °C/hour | |
| Storage temperature | |
| -40 °C to 70 °C (-40°F to 158°F) | |
| -40 °C to 70 °C (-40°F to 158°F) | |
| Relative operating humidity | |
| Long-term:5% to 85% RH, non-condensing Short-term:5% to 95% RH, non-condensing | |
| Long-term:5% to 85% RH, non-condensing Short-term:5% to 95% RH, non-condensing | |
| Relative storage humidity | |
| 5% to 95% RH, non-condensing | |
| 5% to 95% RH, non-condensing | |
| Long-term operating altitude | |
| 3000m @ 40°C | |
| 3000m @ 40°C | |
| Storage altitude | |
| Lower than 5000 m (16404 ft) | |
| Lower than 5000 m (16404 ft) |
