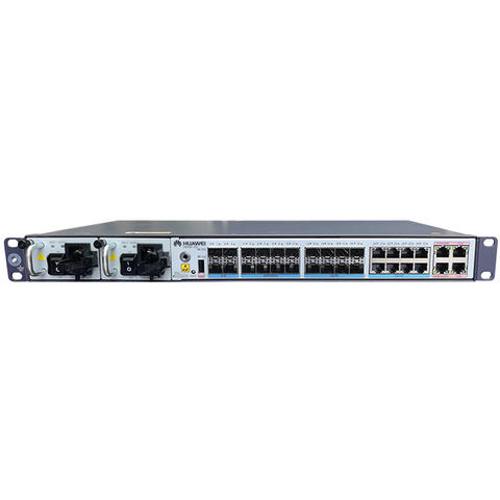

NE05E Series Mid-range Service Routers NE05E-SQ - 2 channels DC entries
Short Description:
| Dimensions (H x W x D) | 44.45 mm x 442 mm x 220 mm (1.75 in. x 17.40 in. x 8.66 in.) |
| Weight (empty) | N/A |
| Weight (full configuration) | DC:4.7kg AC:4.9kg |
| Cabinet installation standard | R01S100 Outdoor Cabinet, ETSI(21-inch), IEC(19-inch) |
| Typical power consumption | AC+DC system:84.2w |
| Typical heat dissipation | 2 channel DC System:268.6BTU/hour 2 channel AC System:277.7BTU/hour AC+DC system:273.1BTU/hour |
| DC input voltage | input voltage range: -38.4V to -72V input rated voltage: -48V/-60V |
| AC input voltage | input voltage range: 100 to 240V input rated voltage: 110V/220V |
| MTBF | 40 years |
| MTTR | 2 hours |
| Availability | 0.99999 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 50°C. |
| Redundant power supply | 1+1 |
| Switching capacity | 272Gbit/s (136 Gbit/s for the upstream traffic and 136 Gbit/s for the downstream traffic) |
| Operating temperature | Long-term: DC:-40°C to 65°C AC:-20°C to 65°C Short-term: N/A Enhance: N/A Remark: Restriction on the temperature variation rate: 30 °C/hour |
| Storage temperature | -40°C to 70°C |
| Relative operating humidity | Long term: 5% to 95% RH, non-condensing Short term: N/A |
| Relative storage humidity | 5% to 100% RH, non-condensing |
| Long-term operating altitude | ≤ 4000 meters. If the altitude is between 1800 meters and 4000 meters, the operating temperature of the device must decrease by 1°C for every 220 meter increase in altitude. |
| Storage altitude | Lower than 5000 meters |
