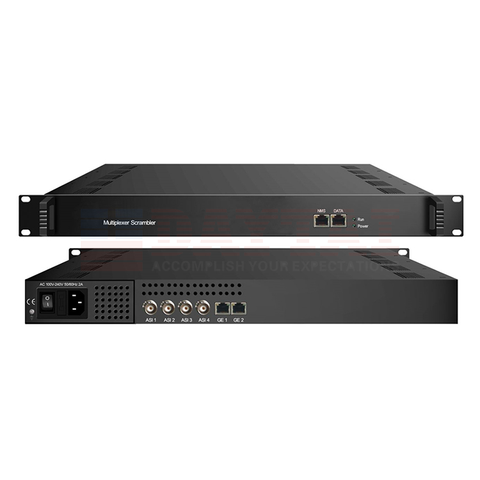

4 ASI Inputs Multiplexer Scrambler
Short Description:
| Item | |
| Specification | |
| Input / Output | |
| 4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP4 IP (MPTS) output over UDP/RTP/RTSP100/1000Mbps self-adaption | |
| Input Packet format: 204/188 self-adaption | |
| ASI: Max output bit-rate: 200Mbps (Each channel) | |
| Mux | |
| Max PIDs | |
| 512 per channel | |
| Functions | |
| PID re-mapping | |
| PCR accurate adjusting | |
| Automatic generating PSI/SI table | |
| PID transparent | |
| Any PID transparent and mapping achievable | |
| ScramblingParameters | |
| Max simulcrypt CA | |
| 4 | |
| Scramble Standard | |
| ETR289, ETSI 101 197, ETSI 103 197 | |
| Scramble Channel | |
| 1 | |
| Connection | |
| Local/remote connection | |
| System | |
| Web-based management | |
| Language: English and Chinese | |
| Ethernet software upgrade | |
| General | |
| Dimensions | |
| 482mm×300mm×44mm (WxLxH) | |
| Weight | |
| 3.5kg | |
| Temperature | |
| 0~45℃(operation), -20~80℃(storage) | |
| Power supply | |
| AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | |
| Consumption | |
| ≤40W |
