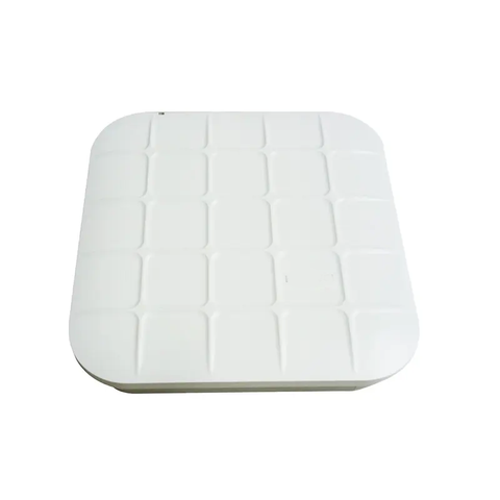

AP3010DN-V2 AP3000 Series access point long range
Short Description:
| Item | Description |
| Interface type | 1 x 10/100/1000M port that connects to the wired Ethernet and supports PoE input. |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Antenna type | Built-in dual-band omnidirectional antennas |
| Antenna gain | 2.4G: 4 dBi5G: 6 dBi |
| Maximum number of VAPs for each radio | 16 |
| Maximum number of users | Fit AP: ≤ 128Fat AP: ≤ 64 |
| Maximum transmit power | 2.4G: 23 dBm (combined power)5G: 23 dBm (combined power)NOTEThe actual transmit power depends on local laws and regulations. |
| Maximum number of non-overlapping channels | 2.4 GHz (2.412 GHz to 2.472 GHz)* 802.11b/g * 20 MHz: 3* 802.11n * 20 MHz: 3* 40 MHz: 15 GHz (5.18 GHz to 5.825 GHz)* 802.11a * 20 MHz: 13* 802.11n * 20 MHz: 13* 40 MHz: 6* 802.11ac * 20 MHz: 13* 40 MHz: 6* 80 MHz: 3NOTEThe table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channelsvaries in different countries. For details, see the Country Codes & Channels Compliance. |
| Channel rate supported | 802.11b: 1, 2, 5.5, and 11 Mbit/s802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s802.11n: 6.5 to 300 Mbit/s802.11ac: 6.5 to 867 Mbit/s |
| System memory | 256 MB DDR232 MB flash |
| Power input | DC: 12 V ± 10%PoE power supply: in compliance with IEEE 802.3af/at |
| Maximum power consumption | 10.2 WNOTEThe actual maximum power consumption depends on local laws and regulations. |
| Operating temperature and altitude | -60 m to +1800 m: -10°C to +50°C1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m. |
| Storage temperature | –40°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| IP rating | IP41 |
| Atmospheric pressure | 70 kPa to 106 kPa |
| Weight | 0.4 kg |
| Dimensions (H x W x D) | 39.5 mm x 180 mm x 180 mm |
