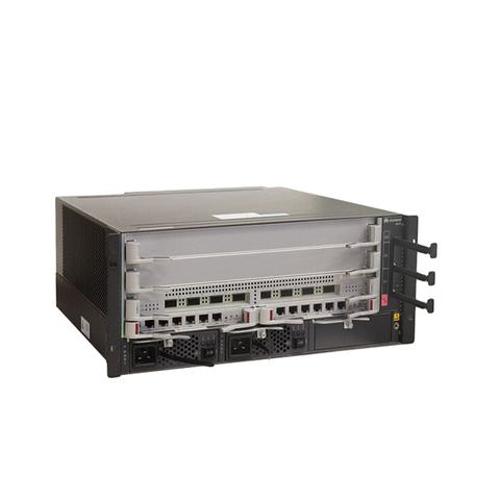

Huawei S9703 Gigabit Fast Ethernet 40G/100G Switch
Short Description:
| LPU slots | S9703: 3 S9706: 6 S9712: 12 |
| MCU slots | 2 |
| Fan slots | S9703: 1 S9706: 2 S9712: 4 |
| Power slots | S9703: 2 S9706: 4 S9712: 6 |
| Maximum port density | V200R001C00 version: S9703: 144xFE, 144xGE, 120x10GE S9706: 288xFE, 288xGE, 240x10GE S9712: 576xFE, 576xGE, 480x10GE V200R002C00 and V200R003C00 versions: S9703: 144xFE, 144xGE, 120x10GE, 24x40GE S9706: 288xFE, 288xGE, 240x10GE, 48x40GE S9712: 576xFE, 576xGE, 480x10GE, 96x40GE V200R005C00 and later versions: S9703: 144xFE, 144xGE, 144x10GE, 24x40GE S9706: 288xFE, 288xGE, 288x10GE, 48x40GE S9712: 576xFE, 576xGE, 576x10GE, 96x40GE |
| Installation | N66E or N68E cabinet S9703: not limited S9706: two chassis in each cabinet S9712: one chassis in each cabinet |
| CSS | S9703: not supported S9706: CSS setup using service ports or CSS cards S9712: CSS setup using service ports or CSS cards |
| Maximum power consumption (fully loaded) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis. | S9703: 1100W S9706: 2200W S9712: 4400W |
| Power specifications | DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) |
| Dimensions (W x D x H, excluding rack-mounting brackets) | S9703: With cable management frames: 442 mm x 585 mm x 175 mm (4 U high) Without cable management frames: 442 mm x 489 mm x 175 mm (4 U high) S9706: With cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high) Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high) S9712: With cable management frames: 442 mm x 585 mm x 663.95 mm (15 U high) Without cable management frames: 442 mm x 489 mm x 663.95 mm (15 U high) |
| Weight (empty/fully loaded) | S9703: 11 kg/25 kg S9706: 29 kg/45 kg S9712: 37 kg/70 kg |
| Reliability and availability | S9703: Mean time between failures (MTBF): 33.8 years Mean time to repair (MTTR): 30 minutes Availability: 0.99999964 S9706: MTBF: 24.2 years MTTR: 30 minutes Availability: 0.99999959 S9712: MTBF: 24.1 years MTTR: 30 minutes Availability: 0.99999959 |
| Environment parameters | Operating temperature and altitude:Operating relative humidity: 5% RH to 95% RH (noncondensing) -60 m to +1800 m: 0°C to 45°C 1800 m to 4000 m: Temperature decreases by 1°C every time the altitude increases 220 m. 4000 m: 0°C to 35°C Storage temperature: -40°C to +70°C Storage altitude: < 5000 m Storage relative humidity: 5% RH to 95% RH (noncondensing) |
| Noise at normal temperature (acoustic power) | ≤ 72 dBA |
| EMC compliance | CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A VCCI Class A IEC61000-6-2 IEC61000-6-4 IEC61000-4-2 ITU-T K 20 ITU-T K 21 ITU-T K 44 CNS13438 CLASS A KN 22 CLASS A |
| Environmental standards compliance | RoHS REACH WEEE |
| Safety standards compliance | IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1 BS EN 60950-1 |
