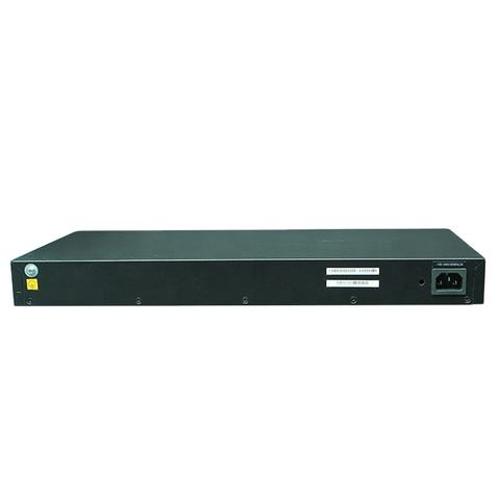

S5720S-52P-LI-AC Layer 3 Network Switch

Short Description:


Product Detail

Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 41 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials) 3.4 kg (7.5 lb)
Stack ports Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports
RTC Not supported
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 47.3 W
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption 29.9 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 44.5 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
