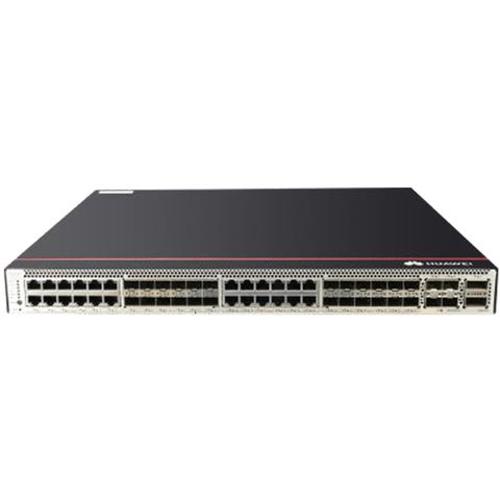

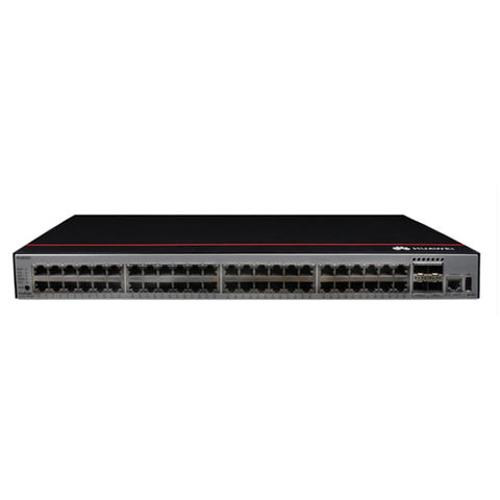

S5735-L48T4X-A CloudEngine 48 Ports with 10G Uplink Switch
Short Description:
| Parameters | |
| CloudEngine S5735-L48T4S-A | CloudEngine S5735-L48T4X-ACloudEngine S5735-L48P4X-A |
| Forwarding Performance | |
| 78 Mpps | 132 Mpps |
| Switching Capacity2 | |
| 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s |
| Fixed Ports | |
| 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735-L12P4S-A: SupportedCloudEngine S5735-L24P4S-A: SupportedCloudEngine S5735-L24P4X-A: SupportedCloudEngine S5735-L48P4X-A: SupportedOther: Unsupported |
| MAC Features | MAC address auto-learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addressesInterface-based MAC address learning limiting |
| VLAN Features | 4094 VLANsGuest VLAN, Voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clientsAutomatic software package and patch loading to SVF clientsOne-click and automatic delivery of service configurationsIndependent SVF client operations |
