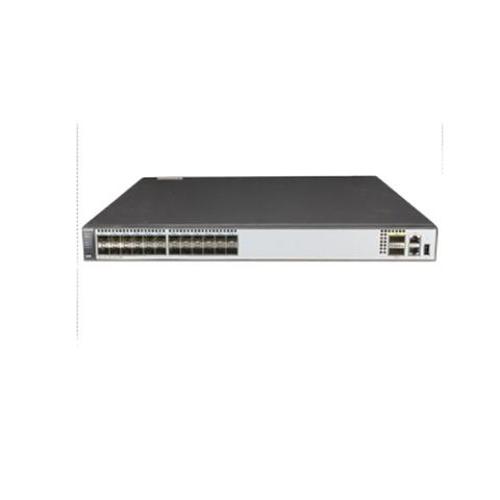

S6720-30C-EI-24S Gigabit Fast Ethernet Optical Fiber Switch
Short Description:
| Fixed Ports | 24 x 10 Gig SFP+, 2 x 40 Gig QSFP+ ports |
| Extended Slot | One extended slot for 4 x 40 Gig QSFP+ interface card |
| MAC Address Table | 288k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANsGuest VLAN and voice VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN MappingQinQ and selective QinQ |
| IPv4 Routing | Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGPVRRP Policy-based routingRouting policy |
| IPv6 Routing | Static routeRIPng OSPFv3BGP4+ISISv6 |
| QoS/ACL | Rate limiting on packets sent and received by an interfacePacket redirectionPort-based traffic policing and two-rate three-color CAREight queues on each portWRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN IDRate limiting in each queue and traffic shaping on ports |
| MPLS | MPLS, MPLS VLL, L3VPN |
| VPLS | Martini VPLS |
| Security | User privilege management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication and TACACS authentication SSH v2.0Hypertext Transfer Protocol Secure (HTTPS) CPU defenseBlacklist and whitelist |
| Operating Environment | Operating temperature: 0°C to 45°C (long-term); -5°C to 50°C (short-term)Relative humidity: 10% to 90% (non-condensing) |
| Input Voltage | AC: Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 50/60 HzDC: Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC |
| Dimensions (W x D x H, mm) | 442 x 420 x 43.6 |
| Typical Power Consumption | Without subcard: 147W;With subcard: 166W |
