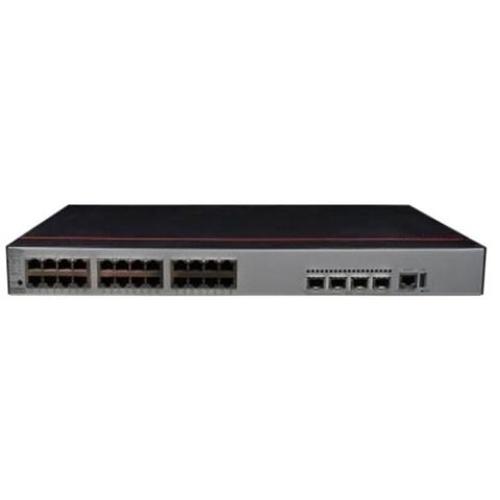

S5735-L24T4X-D1 CloudEngine 24 Ports Switch
Short Description:
| Parameters | |
| CloudEngine S5735-L24T4S-A1loudEngine S5735-L24P4S-A1 | |
| CloudEngine S5735-L24T4X-A1/D1CloudEngine S5735-L24P4X-A1 | |
| CloudEngine S5735-L48T4S-A1CloudEngine S5735-L48P4S-A1 | CloudEngine S5735-L48T4X-A1CloudEngine S5735-L48P4X-A1 |
| 72 Mpps | |
| 42 Mpps | |
| 96 Mpps | |
| 78 Mpps | 132 Mpps |
| Switching Capacity2 | |
| 56 Gbit/s/336 Gbit/s | |
| 128 Gbit/s/336 Gbit/s | |
| 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s |
| Fixed Ports | |
| 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports | |
| 24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | |
| 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735-L8P4S-A1: SupportedCloudEngine S5735-L8P4X-A1: SupportedCloudEngine S5735-L24P4S-A1: SupportedCloudEngine S5735-L24P4X-A1: SupportedCloudEngine S5735-L48P4S-A1: SupportedCloudEngine S5735-L48P4X-A1: SupportedOther models: Unsupported |
| MAC Features | MAC address auto-learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addressesInterface-based MAC address learning limiting |
| VLAN Features | 4094 VLANsGuest VLAN, Voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play of SVF clientsAutomatic software package and patch loading to SVF clientsOne-click and automatic delivery of service configurationsIndependent SVF client running |
