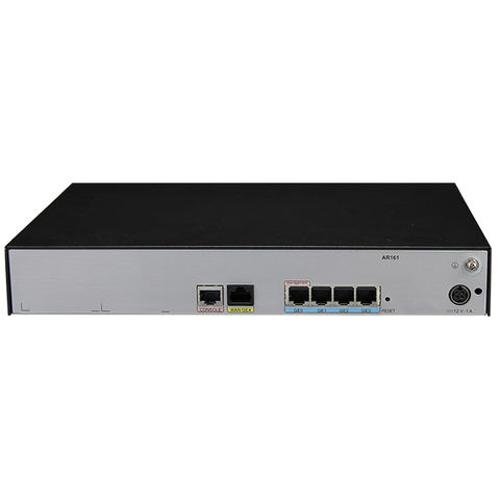

Huawei AR160 Series AR161 1WAN 4 LAN wifi Router Equipment
Short Description:
| Processor | Dual-core, 1 GHz |
| Memory | 512 MB |
| Flash | 512 MB |
| Micro SD card (default: sd1) | None |
| Hard disk | Not supported |
| Dimensions (W x D x H) | With no mounting bracket installed: 300.0 mm x 216.4 mm x 44.0 mm (11.81 in. x 8.52 in. x 1.73 in.), 1 U height With mounting brackets installed: 482.6 mm x 216.4 mm x 44.0 mm (19.0 in. x 8.52 in. x 1.73 in.), 1 U height |
| Weight | 2.8 kg |
| Rated input voltage range (AC) | 100 V to 240 V, 50 Hz/60 Hz |
| Maximum input voltage range (AC) | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum output current | 2 A |
| Maximum output power | 24 W |
| RPS power supply | Not supported |
| PoE power supply | Not supported |
| Maximum power consumption | 9.3 W |
| Fan module | None |
| Airflow (facing the front panel) | None |
| Management interfaces | 1 (RJ45) |
| CON/AUX interfaces | 1 (RJ45) |
| USB 2.0 interfaces | 1 |
| Service interfaces (standard configuration) | WAN interface: one GE electrical interface LAN interfaces: four GE electrical interfaces |
| Extended slots | Not supported |
