| Technical Specification |

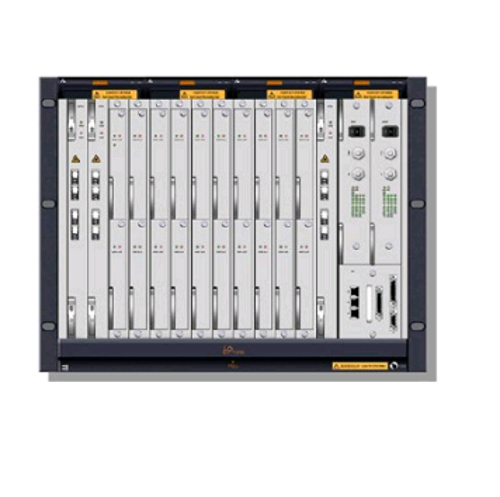

ZXMP M820 |
| Cabinet dimension |
2000/2200/2600 mm (H) ´ 600 mm (W) ´ 300mm (D) |
| Sub-rack dimension |
422 mm (H) ´ 533 mm (W) ´ 286 mm (DX41 subrack)447 mm (H) ´ 533 mm (W) ´ 275 mm (CX22/CX20/CX4 subrack) |
| Power supplying mode |
-48 V (-60 V~ -36 V) DC |
| Installation mode |
ETSI standard cabinet installation |
| MTBF/MTTR |
>400000h / <0.5 h |
| Environmental parameter |
working temperature: 0℃~+45℃(long-term running); -5℃~+50℃ (short-term running); Working humidity: 10%~90% |
