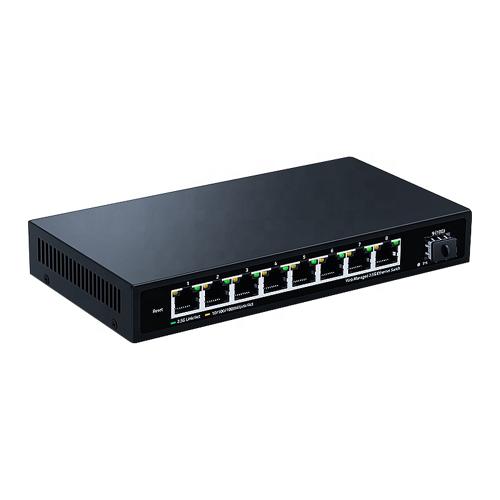

2.5GbE Managed Switch,8 Port 2.5G Network Switcher 10G SFP+ Slot Uplink Web Managed LACP/QOS/Web/VLAN/SNMP/Port Aggregation
Short Description:
| Power | DC 2.1 |
| Ethernet | 8*100/1000/2500M RJ45 ports1*10G SFP+ ports |
| Bandwidth | 60Gbps |
| Packet forwarding rate | 44.64Mpps |
| Package cache | 8Mbit |
| VLAN | 4096 |
| MAC address table | 4K |
| Jumbo frame | 16Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hour |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz(5G Ethernet)IEEE 802.3z(Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-5(Surge) |
| Network medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or higher UTP/STP(≤100m)1000Base-TX: Cat5 or higher UTP/STP(≤100 M) |
| SFP medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certification | CE, FCC, RoHS |
| Working environment | Operating temperature: -10~50°CStorage temperature: -40~70°COperating humidity: 10%~90%, no condensationStorage humidity: 5%~95%, no condensation |
| PWR(Power indicator) | On: Powered onOff: Powered off |
| SYS | Flashing: System startupLighting: System Running |
| 1-8 Port | Green On: 2.5G Link connect normalYellow On: 10/100/1000M Link connect normalOff: Link offFlashing: data transmitting |
| 9 Port Green Light | On: 10G Link connect normalOff: Link offFlashing: data transmitting |
| Reset | Long press for 6 seconds to Factory reset |
| Structural dimension | Product size: 190*100*28mmPackage size: 245*190*60mm Product weight: 0.49KGPacking weight: 0.71KG |
| Operating voltage | Adapter input voltage: AC 100-240 VSwitch input voltage: DC 12V2A |
| Power | Maximum 24W |
| Packing list | Switch 1pcs,Specification 1pcs,Certificate of qualification 1pcs,Power adapter 1pcs |
| Port | Port SwitchPort SpeedPort DuplexPort Flow ControlJumbo, Up to 16356bytes |
| Link Aggregation | Static GroupUp to 2 groupsMax. 4 members per group |
| Storm Control | BoardcastUnknown MulticastUnknown Unicast |
| Port Mirroring | |
| Port Security | MAC Address Constraints |
| Port Isolation | |
| Port Rate-limit | |
| Loopback Detection | |
| VLAN | Access/Trunk/HybridCongurable VID from 1 - 4094;Max. 31 static VLAN groups |
| MAC Address | Dynamic AddressStatic Address |
| Spnning Tree Protocol | STP/RSTP/MSTPEdge Port |
| Multicast | IGMP SnnopingIGMP V1/V2Router PortStatic IGMP Join |
| QoS | Traffic classification based, Strict priority and WRRPort Priority Supports up to 8 queues per port |
| Access Protocol | HTTP |
