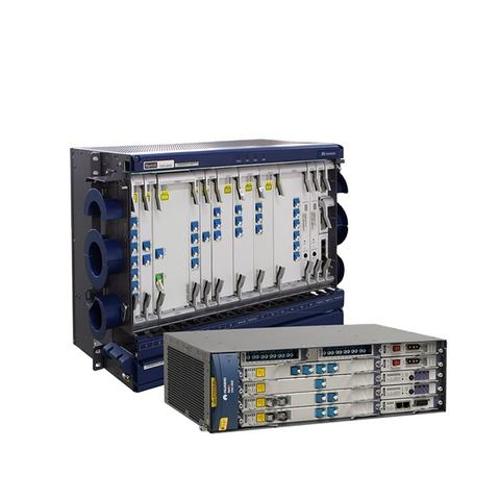

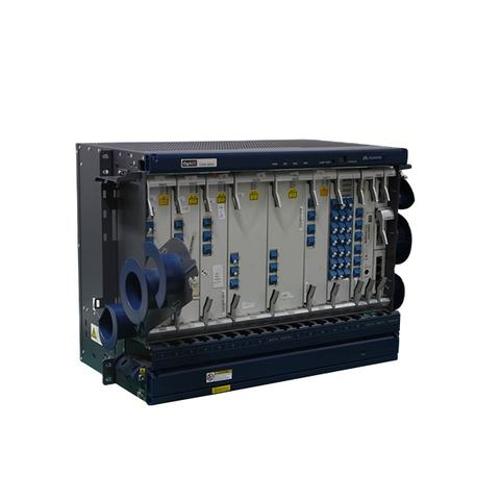

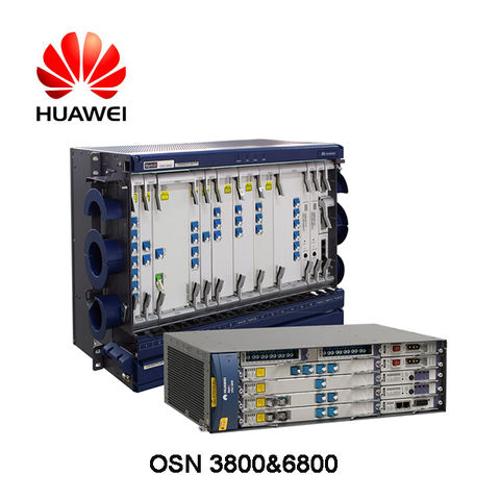

OSN 3800 HUAWEI Fiber Optic Equipment WDM Wavelength Division
Short Description:
| Dimensions (mm) | 436 (W) x 295 (D) x 134 (H) |
| Number of slots for service boards | 4 |
| Wavelength (max) | DWDM: 80-ch, CWDM: 8-ch |
| Wavelength range | DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2) |
| Max. rate per channel | 100 Gbit/s (OTU4) |
| Service types supported | SDH, SONET, Ethernet, SAN, OTN, Video |
| Line rate | 2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
| Supported pluggable optical modules | eSFP, SFP+, XFP, CFP |
| Topology | Point-to-point, chain, ring |
| Redundancy and protection | |
| Network level protection | Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, OWSP, board-Level protection |
| Equipment level protection | Power redundancy, fan redundancy, system control and communication board redundancy |
| Optical power management | ALS, AGC, ALC, IPA |
| Nominal working voltage | -48 V DC/-60 V DC |
| Maximum subrack power consumption | AC power: 350 WDC power: 420 W |
| Operation environment | Subrack temperature:Long-term operation: 5°C (41 °F) to 45°C (113 °F)Short-term operation: -5°C (23 °F) to 55°C (131 °F)Relative humidity:Long-term operation: 5% to 85%Short-term operation: 5% to 95% |
| Mean time to repair (MTTR) | 4 hours |
| Mean time between failures (MTBF) | 27.35 years |
