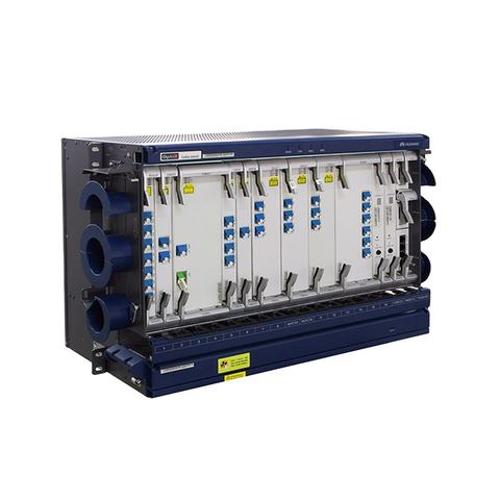

Huawei DWDM CWDM Mux Fiber Optic Equipment OSN 6800
Short Description:
| SDH | |
| STM-1 | |
| 155.52 Mbit/s | ITU-T G.707 ITU-T G.691 ITU-T G.957 ITU-T G.693 ITU-T G.783 ITU-T G.825 |
| STM-4 | 622.08 Mbit/s |
| STM-16 | 2.5 Gbit/s |
| STM-64 | 9.95 Gbit/s |
| STM-256 | 39.81 Gbit/s |
| SONET | |
| OC-3 | |
| 155.52 Mbit/s | GR-253-CORE GR-1377-CORE ANSI T1.105 |
| OC-12 | 622.08 Mbit/s |
| OC-48 | 2.5 Gbit/s |
| OC-192 | 9.95 Gbit/s |
| OC-768 | 39.81 Gbit/s |
| Ethernet service | |
| FE (optical signal) | |
| Interface rate: 125 Mbit/s Service rate: 100 Mbit/s | IEEE 802.3u |
| FE (electrical signal) | Interface rate: 100 Mbit/s Service rate: 100 Mbit/s |
| GE(optical signal) | |
| Interface rate: 1.25 Gbit/s Service rate: 1 Gbit/s | IEEE 802.3z |
| GE (electrical signal) | Interface rate: 1 Gbit/s Service rate: 1 Gbit/s |
| 10GE WAN | |
| 9.95 Gbit/s | IEEE 802.3ae |
| 10GE LAN | 10.31 Gbit/s |
| 100GE | |
| 103.125 Gbit/s | IEEE 802.3ba |
| SAN service | |
| ETR | |
| 16 Mbit/s | IBM GDPS( Geographically Dispersed Parallel Sysplex) Protocol |
| CLO | 16 Mbit/s |
| FDDI | |
| 125 Mbit/s | ISO 9314 |
| ESCON | |
| 200 Mbit/s | ANSI X3.296 ANSI X3.230 ANSI X3.303 |
| FICON | 1.06 Gbit/s |
| FICON Express | 2.12 Gbit/s |
| FC100 | 1.06 Gbit/s |
| FC200 | 2.12 Gbit/s |
| FC400 | 4.25 Gbit/s |
| FC800 | 8.5 Gbit/s |
| FC1200 | 10.51 Gbit/s |
| FICON4G | 4.25 Gbit/s |
| FICON8G | 8.5 Gbit/s |
| FICON10G | 10.51 Gbit/s |
| ISC 1G | |
| 1.06 Gbit/s | IBM GDPS( Geographically Dispersed Parallel Sysplex) Protocol |
| ISC 2G | 2.12 Gbit/s |
| InfiniBand 2.5G | |
| 2.5 Gbit/s | InfiniBand TM Architecture Release 1.2.1 |
| InfiniBand 5G | 5 Gbit/s |
| OTN service | |
| OTU1 | |
| 2.67 Gbit/s | ITU-T G.709 ITU-T G.959.1 GR-2918-CORE |
| OTU2 | 10.71 Gbit/s |
| OTU2e | 11.10 Gbit/s |
| OTU3 | 43.02 Gbit/s |
| OTU4 | 111.81 Gbit/s |
| Video service | |
| DVB-ASI | |
| 270 Mbit/s | EN 50083-9 |
| SDI | |
| 270 Mbit/s | SMPTE 259M |
| HD-SDI | |
| 1.49 Gbit/s | SMPTE 292M |
| HD-SDIRBR | 1.49/1.001 Gbit/s |
| 3G-SDI | |
| 2.97 Gbit/s | SMPTE 424M |
| 3G-SDIRBR | 2.97/1.001 Gbit/s |
