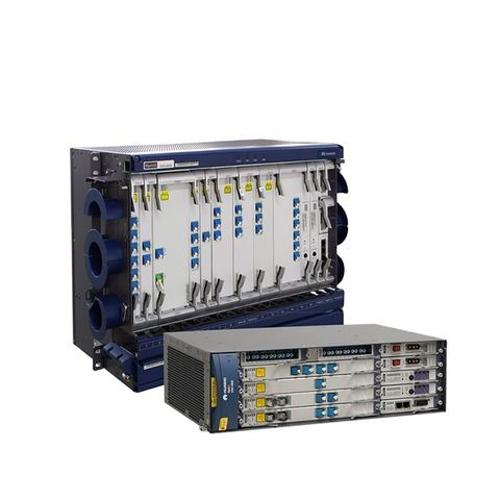

Huawei OSN6800 CWDM DWDM telecommunication equipment
Short Description:
| Parameter | |
| N66B (ETSI 600 mm Cabinet) | N63B (ETSI 300 mm Cabinet) |
| Appearance | |
| Doors/Panels | |
| Front and rear doors: They can be disassembled. A key is provided for unlocking each of the doors. Side panels: They are secured with screws and can be disassembled. | Front door: The door can be disassembled. A key is provided for unlocking the door. Rear and side panels: They are secured with screws. Only the side panels can be disassembled. |
| Door keys | The door keys for all N66B cabinets and N63B cabinets are the same. |
| Dimensions (H x W x D) | |
| Not equipped with a height extension frame: 2200 mm (86.6 in.) x 600 mm (23.6 in.) x 600 mm (23.6 in.) Equipped with a height extension frame: 2600 mm (102.4 in.) x 600 mm (23.6 in.) x 600 mm (23.6 in.) Not equipped with a height extension frame: 2200 mm (86.6 in.) x 600 mm (23.6 in.) x 300 mm (11.8 in.) Equipped with a height extension frame: 2600 mm (102.4 in.) x 600 mm (23.6 in.) x 300 mm (11.8 in.) | |
| Weight | |
| Not equipped with a height extension frame: 120 kg (264.6 lb.) Equipped with a height extension frame: 130 kg (286.6 lb.) Not equipped with a height extension frame: 60 kg (132.3 lb.) Equipped with a height extension frame: 66 kg (145.5 lb.) | |
| Standard working voltage | -48 V DC or -60 V DC |
| Working voltage range | -48 V DC power source: -40 V to -57.6 V -60 V DC power source: -48 V to -72 V |
