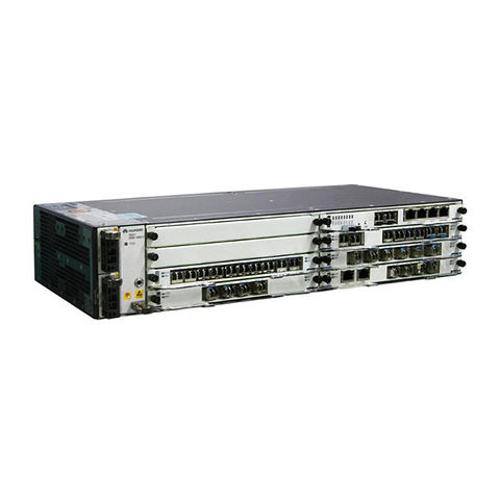

Huawei OSN 1800 II 100G Multi-Service Optical Transport Network (MS-OTN) transmission DWDM CWDM
Short Description:
| Dimensions (mm) | 88 (H) x 442 (W) x 220 (D) |
| Number of slots for service boards | DC power-supply chassis: 6 AC power-supply chassis: 4 |
| Cross-connect capability | |
| OTN | Optical layer: Implements the add/drop multiplexing of any two, four, eight, 16, and 40 adjacent wavelengths on the OTM and the OADM boards. Electrical layer: Supports intra-board cross-connections of ODU0/ODU1/ODUflex/ODU2 services. |
| Packet service | A packet switching capacity of 60 Gbit/s |
| SDH | Higher order cross-connection: 20 Gbit; Lower order cross-connection: 5 Gbit/s. |
| Maximum number of wavelengths | |
| DWDM | On a network that contains only OptiX OSN 1800, a 16-channel DWDM system is supported. On a hybrid network that contains OptiX OSN 1800 and OptiX OSN 8800, a 40-channel DWDM system is supported if OBU boards are used on the network. |
| CWDM | CWDM: 8-ch(max) |
| Wavelength range | DWDM: 192.1THz to 196.00THz (Band-C, ITU-T G.694.1) CWDM: 1471nm to 1611nm (Band S+C+L, ITU-T G.694.2) |
| Max. rate per channel | 10 Gbit/s |
| Service types supported | SDH service, SONET service, PDH service, OTN service, Ethernet service, ATM/IMA service, CPRI service, SAN service, video service, and others |
| Line rate | 2.5 Gbit/s, 10 Gbit/s |
| Pluggable optical/electrical module | Optical module: SFP, XFP, SFP+, TXFP Electrical module: GE SFP, FE SFP, STM-1 SFP |
| Topology | Point to point, chain, ring, ring-with-chain, intersecting rings, and tangent ring |
| Applications | Pure OTN networks, pure packet networks, pure TDM networks, MS-OTN networks (OTN+packet+TDM), hybrid networks (packet+TDM) |
| Redundancy and Protection | |
| Network level protection (OTN) | Client 1+1 protection, intra-board 1+1 protection, ODUk SNCP, and optical line protection |
| Network-level protection (packet service) | MPLS/MPLS-TP Tunnel APS, MPLS/MPLS-TP PW APS, MSTP, ERPS, LPT, LAG, ML-PPP, and packet LMSP |
| Network-level protection (TDM) | SDH protection: SNCP, ring MSP, linear MSP EoS protection: LAG, LCAS, LPT, STP/RSTP |
| Equipment level protection | SCC, cross-connect, and timing integrated board redundancy Power redundancy Fan redundancy |
| Maintenance | |
| MPLS OAM | Supports CV, FFD, BDI, FDI, Ping, and Traceroute. |
| MPLS-TP OAM | Supports CC, RDI, AIS, LB, LT, single-end PW LM, and two-way DM. |
| ETH OAM (packet) | Ethernet service OAM: supports continuity check (CC), loopback (LB), linktrace (LT), alarm indication signal (AIS), loss measurement (LM), delay measurement (DM), frame delay variation (FDV), and remote defect indication (RDI). Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, remote loopback, and self-loop detection. |
| ETH OAM (TDM) | Ethernet service OAM: supports CC, LB, LT, and OAM ping. Ethernet port OAM: supports OAM auto-discovery, link performance monitoring, remote loopback, and self-loop detection. |
| ATM OAM | Supports CC, LB, RDI, and AIS. |
| Synchronization | |
| OTN | Synchronous Ethernet clock (transparent transmission only) Physical layer clock IEEE 1588v2 |
| Packet | Synchronous Ethernet clock IEEE 1588v2 IEEE 1588 ACR CES ACR |
| TDM | Physical layer clock Synchronous Ethernet |
| TP-Assist | Service configuration: supports end-to-end service configuration and automatic deployment of alarm management. Service commissioning: supports one-click service connectivity and performance tests, and automatic tests with no need for any instrument. Routine maintenance: supports performance statistics and monitoring, E-Line and E-LAN service path visualization. Fault diagnosis: supports intelligent fault diagnosis, IP Ping initiation and response, and service loop detection. |
| Standard working voltage | -48 V/-60 V DC power input 110 V/220 V AC power input |
| Mounting option | 19" rack ETSI 300/600 mm rack Outdoor cabinet (APM30H) Wall- or Pole-mount |
| MTTR | 4 hours |
| MTBF | 61.44 years |
