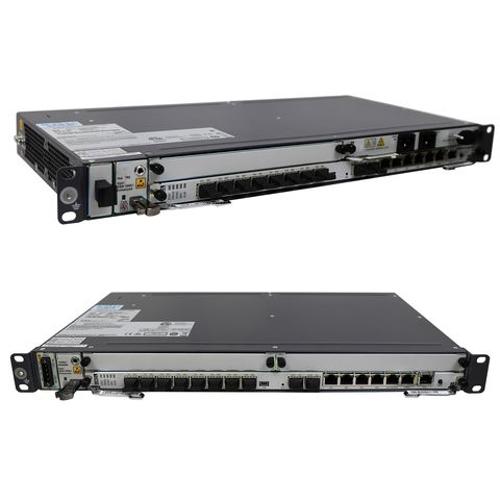

OSN1800 100G CWDM DWDM MUX demux Multi-Service Optical Transport Network OTN
Short Description:
| Item | |
| N63E/N63B Cabinet | |
| 19-Inch Cabinet | 19-Inch Open Rack |
| Appearance | |
| NOTE: N63E cabinets use front columns while N63B cabinets use middle columns. | |
| Weight | |
| N63E cabinet: 45 kg (99.2 lb.) N63B cabinet: 60 kg (132.3 lb.) | |
| 76 kg (167.6 lb.) | 2200 mm-high cabinet: 25 kg (55.1 lb.) 2000 mm-high cabinet: 22 kg (48.5 lb.) |
| Dimensions (H x W x D) | |
| 2200 mm x 600 mm x 300 mm (86.6 in. x 23.6 in. x 11.8 in.) | |
| 2200 mm x 600 mm x 600 mm (86.6 in. x 23.6 in. x 23.6 in.) | 2200 mm x 600 mm x 600 mm (86.6 in. x 23.6 in. x 23.6 in.) 2000 mm x 600 mm x 600 mm (78.7 in. x 23.6 in. x 23.6 in.) |
| Available space | |
| 45 U | |
| 45 U | 2200 mm (height): 45 U 2000 mm (height): 40 U |
| Space required by the hardware | Ordinary OptiX OSN 1800 I chassis: 1 U OptiX OSN 1800 I chassis integrated with an FMT: 2 U Ordinary OptiX OSN 1800 II chassis: 2 U OptiX OSN 1800 II chassis integrated with an FMT: 3 U DC power distribution unit (PDU): 3 U FMT: 1 U Dispersion compensation module (DCM) frame: 1 U |
| Configuration principles | |
| Configure one FMT for each OptiX OSN 1800 II chassis and each two OptiX OSN 1800 I chassis. Configure a maximum of 12 OptiX OSN 1800 I chassis in one cabinet (ensure that the temperature in the equipment room is within the range from -5°C to +40°C). Configure a maximum of eight OptiX OSN 1800 II chassis in one cabinet (ensure that the temperature in the equipment room is within the range from -5°C to +40°C). For an N63E cabinet, keep a minimum distance of 37 mm between two adjacent OptiX OSN 1800 II chassis and a minimum distance of 32 mm between two adjacent OptiX OSN 1800 I chassis, to facilitate fiber routing. No space needs to be reserved between devices in an N63B cabinet because fibers can be routed through the space between the column and a side panel of the cabinet. No space needs to be reserved between chassis and the FMTs configured for the chassis. One FMT is configured for each OptiX OSN 1800 II chassis and each two OptiX OSN 1800 I chassis. Configure a maximum of 12 OptiX OSN 1800 I chassis in one cabinet (ensure that the temperature in the equipment room is within the range from -5°C to +40°C). Configure a maximum of eight OptiX OSN 1800 II chassis in one cabinet (ensure that the temperature in the equipment room is within the range from -5°C to +40°C). No space needs to be reserved between devices in a cabinet because fibers can be routed through the space between the column and a side panel of the cabinet. No space needs to be reserved between chassis and the FMTs configured for the chassis. |
