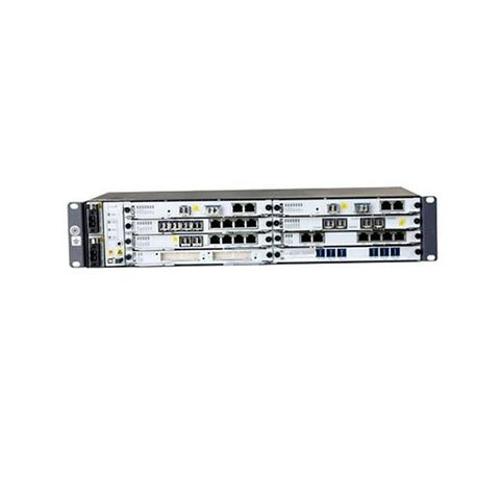

OSN 550 Vagner SDH Wireless Transmitter Receiver
Short Description:
| Subrack dimensions | 88 mm (H) x 442 mm (W) x 220 mm (D) |
| Switching capacity | Packet: 60 Gbit/s and TDM: 20 Gbit/s (higher order), 5 Gbit/s (lower order) |
| Highly reliable design | 1+1 hot backup for power supply modules |
| Supported interfaces | |
| Packet transport interfaces | E1, ch STM-1, ATM STM-1, FE/GE/10GE |
| MSTP interfaces | STM-1/4/16, E1/E3/T1/T3, FE/GE |
| WDM interfaces | 40-channel DWDM interfaces, compliant with ITU-T G.694.1 |
| Networking Mode | Supports pure packet,hybrid (packet + SDH) or SDH networking |
| Power Supply | -38.4~-72V DC; 110/220V AC |
| Service features | E-Line and E-LAN |
| QoS features | DiffServ mode based on traffic classification |
| Hardware-based OAM | |
| MPLS OAM | LSP/PW OAM: |
| MPLS-TP OAM | |
| LSP/PW OAM: | Section OAM: |
| CC,LB,LT | CC,LB |
| AIS,RDI | RDI |
| LM,DM | LM,DM |
| LCK,TST | LCK,TST |
| CSF | |
| Ethernet OAM | ETH-CC(Continuity Check),ETH-Loopback,ETH-Link Trace |
| Clock synchronization | Two external clock inputs/outputs (2 MHz or 2 Mbit/s) |
| Carrier-class protection | SDH Network Protection |
| Clock synchronization | Two external clock inputs/outputs (2 MHz or 2 Mbit/s) |
