catv trunk amplifier

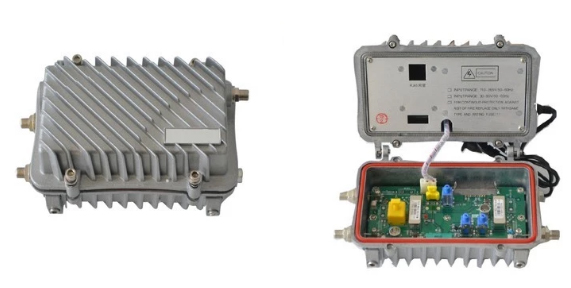

Optical amplifier is an significant device deployed for optical communication and laser physics. No need for converting optical signals into electrical signals first, optical amplifier can directly amplify the optical signals. It is considered to be a laser without optical cavity or with suppressed feedback from cavity. Optical amplifiers are often installed at places where optical signals are weak and need to be enhanced. This ensures the stable transmission of optical signals in the rest cables.
1. Application
Single-mode fiber 1550 amplification network
FTTH network
CATV network

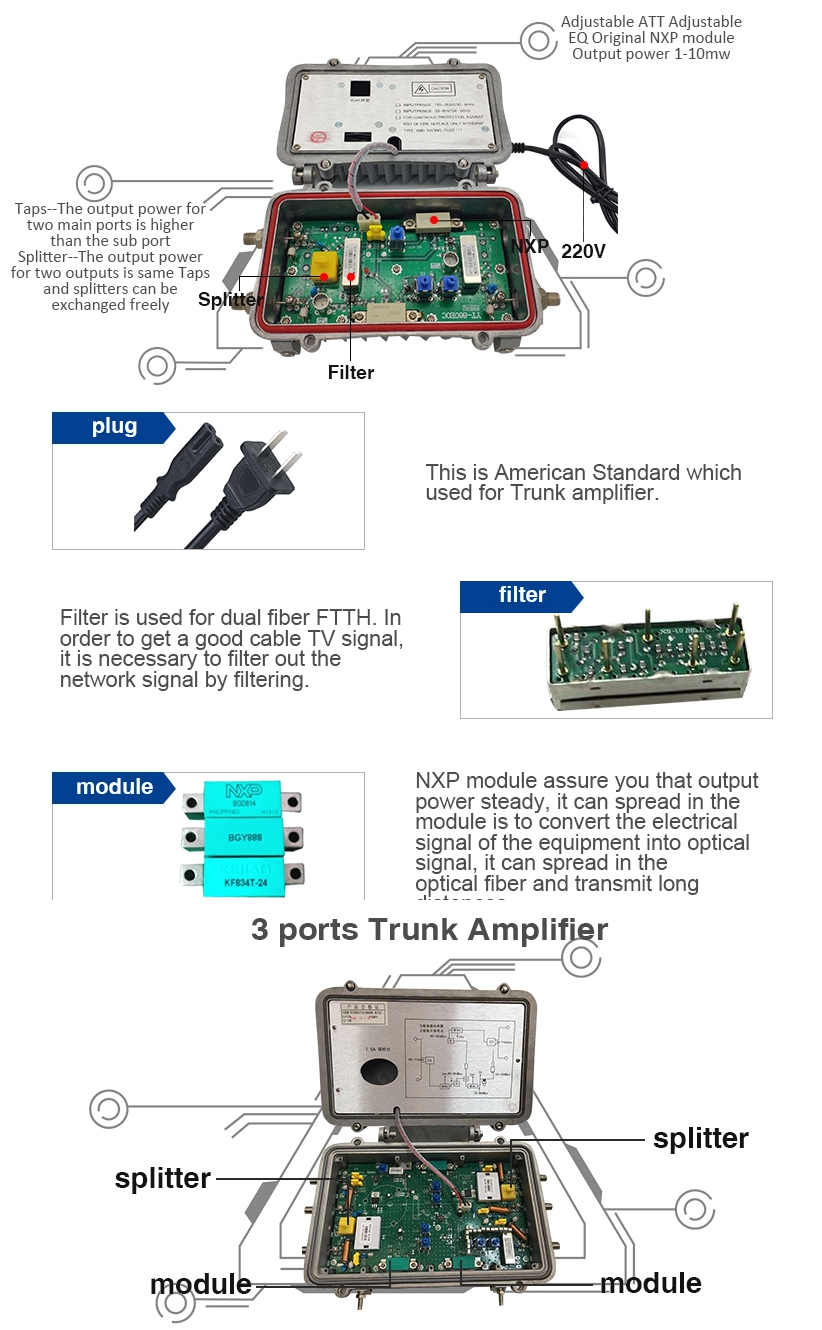

Specification
|
Item |
Unit |
2 port |
3 port |
|
Frequency Range |
MHZ |
47/750 |
47-860 |
|
Frequency Division ( Selected by the user ) |
MHZ |
30/47、42/58 、65/87 |
|
|
Rated Gain |
dB |
30 |
30 |
|
Flatness In Band |
dB |
±0.75 |
±0.75 |
|
Rated Input Level |
dBµV |
72 |
72 |
|
Rated Output Level |
dBµV |
102 |
102 |
|
Gain Adjustment Range |
dB |
0-20 |
|
|
Slope Adjustment Range |
dB |
0~20 |
|
|
Noise figure |
dB |
≤8 |
≤10 |
|
(CT) /59CH input |
dB |
63 |
61 |
|
(CSO) /59CH input |
dB |
62 |
61 |
|
Temperature Range (－15℃～45℃) |
dB |
-1.5dB-1dB
|
|
|
Return Loss |
dB |
≥16 |
|
|
Lightning Resistance |
KV |
5(10/700S) |
|
|
Power Voltage |
V |
AC 220±10%or AC 30~90v |
|
|
Power Consumption |
VA |
12 |
|
|
Dimensions |
mm |
190×260×90 |
|
|
Working Temperature |
℃ |
-20±50 |
|
|
Weight |
Kg |
1.82 |
|
|
Bidirectional transmission function |
|
(35/47M or 65/87M) optional |
|
