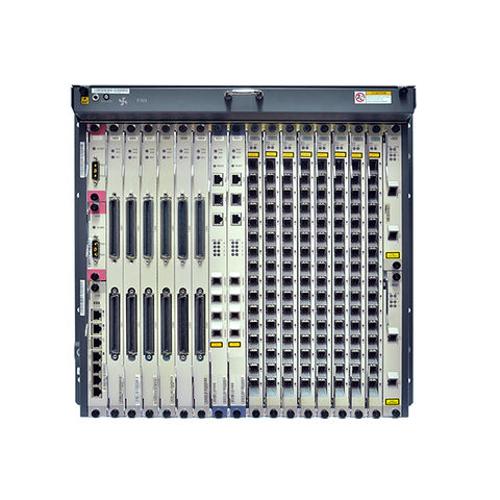

Huawei GPON OLT MA5680T MA5600T
Short Description:
| Port Type | |
| Port | Description |
| Upstream port | |
| GE optical/electrical port | All GE optical ports use the small form-factor pluggable (SFP) optical transceivers. Through different SFP modules, the optical ports support different transmission distances. Single-mode SFP transceivers and multi-mode SFP transceivers are available. Multi-GE upstream transmission is supported to meet the multi-edge network requirements of the carrier. |
| 10GE optical port | It provides the 10GE upstream transmission function |
| E1 port | It provides the E1 upstream transmission function. |
| STM-1 port | It supports the upstream transmission through the STM-1 optical port and supports the ESFP/SFP module. |
| Service port | |
| GPON port | It provides the GPON access. It supports a maximum upstream rate of 1.244 Gbit/s and a maximum downstream rate of 2.488 Gbit/s |
| P2P optical port | It provides the P2P Ethernet optical access at a rate of 100 Mbit/s. |
| Ethernet optical port | It provides the GE subtending function. |
| Maintenance port | |
| Maintenance serial port | It is used for local and remote maintenance. |
| Environment monitoring serial port | Various environment parameters are collected by the monitoring device and then through this port reported to the MA5680T. |
