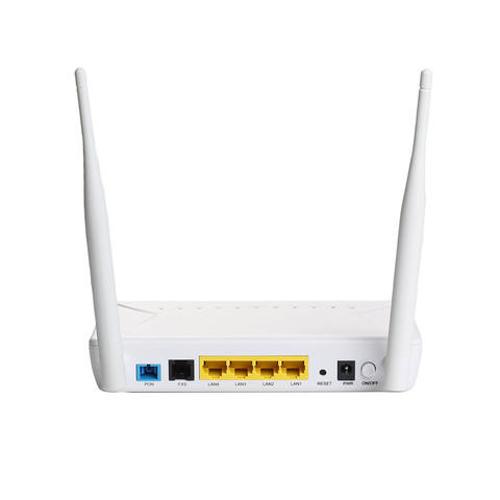

Multifunctional ethernet ont wireless wifi onu epon onu compatible with ftth solutions
Short Description:
| Technical items | Description |
| PON interface | 1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps |
| Wavelength | EPON Tx 1310nm, EPON Rx 1490nm |
| Optical interface | SC connector |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R One internal antenna and one external antenna |
| WLAN throughput | 100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
| LAN interface | 4x 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex / Half Duplex, AUTO-MDIX, RJ45 connectors |
| Router throughput | Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes |
| Downstream POTS interface | 1 FXS, RJ11 connectors |
| Indicators | 14 indicators, for status of power supply, PON, LAN and POTS . |
| DC power supply | +12V, external AC-DC power adaptor |
| Power consumption | ≤10W |
| Operating condition | Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed) |
| Storing condition | Storing temp: -30~+60℃ Storing humidity:10~90%(non-condensed) |
| Dimension | 205mm*50mm*138mm(W*H*D) |
| Net weight | 0.4Kg |
