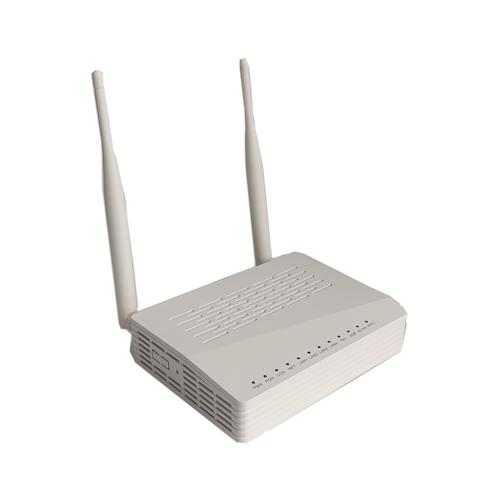

cheap price Ftth Xpon ONU Gepon 4 ports wifi voip onu gpon/xpon
Short Description:
| Technical item | Details |
| PON Interface | 1 GPON |
| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: +1~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| Flash | SPI NAND Flash 128MB |
| LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n,ac |
| 2.4G Operating frequency:2.400-2.4835GHz | |
| 5.8G Operating frequency:5.150-5.825GHz | |
| 2.4G 2*2 MIMO, rate up to 300Mbps | |
| 5.8G 2*2 MIMO ,rate up to 867Mbps | |
| 4 external antennas 5dBi | |
| Support Multiple SSID | |
| POTS interface | FXS, RJ11 connector |
| Support: G.711/G.723/G.726/G.729 codec | |
| Support: T.30/T.38/G.711 Fax mode, DTMF Relay | |
| Line testing according to GR-909 | |
| USB | Standard USB2.0 |
| LED | 9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G |
| Push-Button | 2 ,For Function of Reset and WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） |
