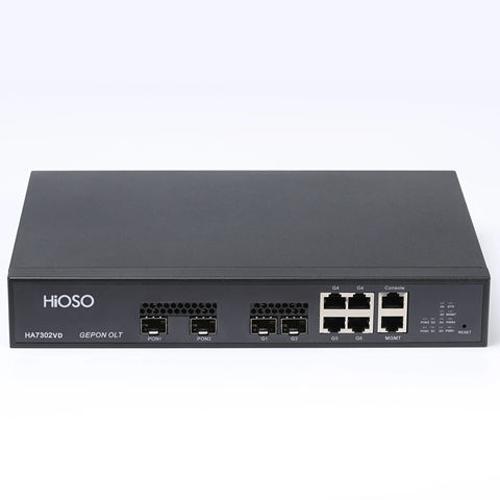

HA7302VD pizza box type 2 SFP PON ports EPON OLT.works with different brands EPON ONUs and XPON ONUs which support CTC standard
Short Description:
| Parameter | Specification |
| Operating wavelength | 1310(RX) /1490(TX) |
| Optical power | +2.5 ~ +7dBm |
| Receiving sensitivity | -30dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 2 PON, maximum 128pcs ONU |
| MAC | 8k |
| Uplink port | 2 1000M SFP ports + 4 1000M LAN RJ45 ports |
| PON port | 2 SFP 1000M fiber ports |
| Control port | 1 10/100M MGMT NMS RJ45 port;1 Console(RJ45), to debug the device; |
| MTBF | 100,000 hours |
| EPON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Other functions | Support IGMPv1/v2, IGMP Snooping and IGMP ProxySupport remote config onu, remote upgrade ;Real time alarm |
| Protocols supported | Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z |
| Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree | |
| Support IEEE 802.1P QoS、IEEE802.3X Flow Control | |
| Support IEEE802.3ad Trunk、IEEE802.1W RSTP | |
| Network management | Support GUI management based on SNMP |
| Support WEB/CLI, Support inband and outband management |
