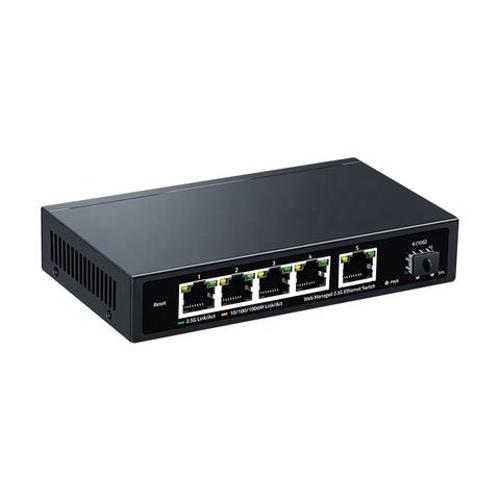

2.5GbE Managed Switch,5 Port 2.5G Network Switcher 1 x 10G SFP+ Slot Uplink Web Managed LACP/QOS/Web/VLAN/SNMP/Port Aggregation
Short Description:
| Power | DC 2.1 |
| Ethernet | 5*100/1000/2500M RJ45 ports1*10G SFP+ ports |
| Bandwidth | 45Gbps |
| Packet forwarding rate | 44.64Mpps |
| VLAN | VLAN range 1-4094, with a maximum active VLAN of 31 |
| MAC address table | 4K |
| Jumbo frame | 16Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hour |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz(5G Ethernet)IEEE 802.3z(Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-5(Surge) |
| Network medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or higher UTP/STP(≤100m)1000Base-TX: Cat5 or higher UTP/STP(≤100 M) |
| SFP medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certification | CE, FCC, RoHS |
