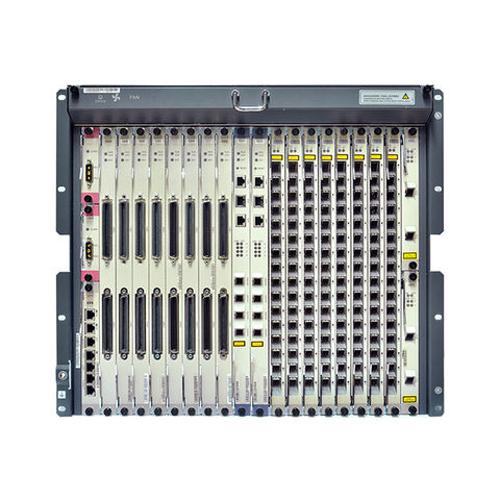

MA5680T GPON 10G EPON OLT
Short Description:
| Port Type | |
| Port | Description |
| Upstream port | |
| GE optical/electrical port | use the Single-mode / multi-mode SFP optical transceivers. supports different transmission by different SFP. Multi-GE upstream transmission is supported to meet the multi-edge network requirements of the carrier. |
| 10GE optical port | the 10GE upstream transmission |
| E1 port | the E1 upstream transmission |
| STM-1 port | the upstream transmission through the STM-1 optical port. supports ESFP/SFP module |
| Service port | |
| GPON port | the GPON access. Maximum upstream rate: 1.244 Gbit/s Maximum downstream rate: 2.488 Gbit/s |
| P2P optical port | P2P Ethernet optical access, 100 Mbit/s. |
| Ethernet optical port | GE subtending |
| Maintenance port | |
| Maintenance serial port | for local and remote maintenance |
| Environment monitoring serial port | the monitoring device collects various environment parameters. this port reports to the MA5680T. |
