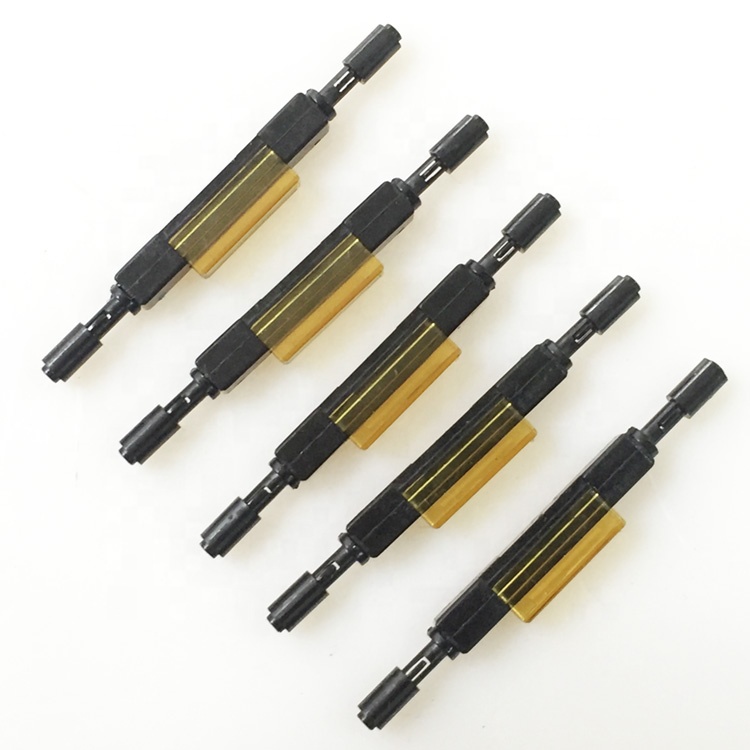

Single mode multimode cold splice fiber optic splicing kit quick connector fast
Short Description:
| Range | 0.25mm&0.9mm |
| Fiber diameter | 125μm(657A&657B) |
| Compact cladding diameter | 250μm, 900μm |
| Applicable mode | single mode&multimode |
| Insert loss | ≤0.1dB |
| Return loss | ≤-40dB |
| Bare fiber fastening force | >5N |
| Clamping force of tight cladding layer | >8N |
| Use temperature | -40~+75℃ |
| Repeat (10 times) | ΔIL≤0.2dBΔRL≤5dB |
