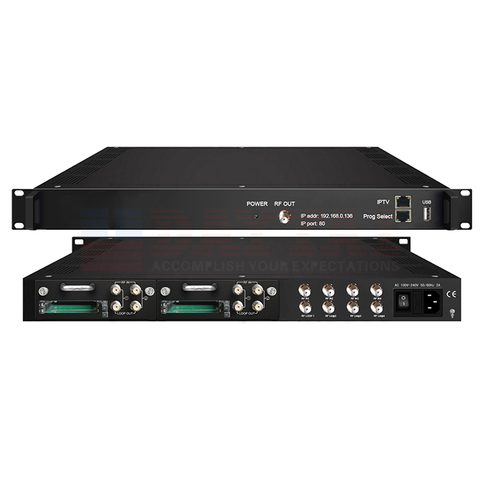

4 Tuner with CAM Slots 512 SPTS out over UDP and RTP protocol RJ45, 1000M Unicast/Multicast Multi-Channel CI-Receiver
Short Description:
| Item | |
| Specification | |
| Input | |
| 4 Tuner (DVB-C/T/(T)/S/S2/S2X/ISDBT optional) + 4 Tuner with CAM Slots (DVB-C/T/(T)/S/S2/S2X/ATSC/ISDBT optional) | |
| Tuner Section | |
| Multi-mode tuners switchable | |
| DVB-C | |
| Input Frequency | |
| 60 ~890 MHz | |
| Standard | |
| J.83A, J.83C | J.83B |
| Constellation | |
| 16/32/64/128/256 QAM | 64/256 QAM |
| DVB-T/(T) | |
| Input Frequency | |
| 60 ~890 MHz | |
| Bandwidth | |
| 6/7/8 M | |
| ISDB-T | |
| Input Frequency | |
| 60 ~890 MHz | |
| DVB-S/S2/S2X Tuner | |
| DVB-S | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| 0.5~45Msps | |
| Signal Strength | |
| - 65- -25dBm | |
| FEC | |
| 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Constellation | |
| QPSK | |
| Max input bitrate | |
| ≤129 Mbps | |
| DVB-S2 | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| QPSK/8PSK /16APSK: 0.5~45 Msps32APSK: 0.5~40Msps; | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/1032APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Constellation | |
| QPSK, 8PSK, 16APSK, 32APSK | |
| Max input bitrate | |
| ≤129 Mbps | |
| DVB-S2X | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol rate | |
| QPSK/8PSK /16APSK: 0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~40Msps | |
| FEC | |
| QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 | |
| Constellation | |
| QPSK, 8PSK, 8APSK, 16APSK, 32APSK | |
| Max input bitrate | |
| ≤129 Mbps | |
| ATSC-T | |
| Input Frequency | |
| 54~858MHz | |
| Bandwidth | |
| 6M | |
| Descrambling | |
| CAM/CI | |
| 4 sets | |
| BISS Descrambling | |
| Mode 1, Mode E (descramble individual program) | |
| Stream out | |
| 512 SPTS out over UDP and RTP protocol (RJ45, 1000M Unicast/Multicast) | |
| System | |
| Web-based NMS support | |
| Ethernet software upgrading | |
| General | |
| Dimension | |
| 482mm×300mm×44.5mm (W*D*H) | |
| Temperature | |
| 0~45℃(Operation) ; -20~80℃(Storage) | |
| Power | |
| AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ | |
