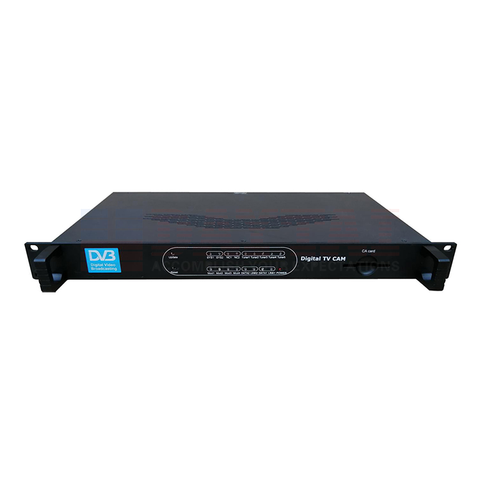

Digital TV Headend IRD Integrated Receiver Decoder Digital TV CAM
Short Description:
| Input | |
| Input | |
| 5x RF (DVB-C, T/T2, S/S2 optional), F type | |
| Tuner input | |
| DVB-C | |
| Standard | J.83(DVB-C), J83B, J.83C |
| Input frequency | 85~860MHz |
| Constellation | 16/32/64/128/256 QAM |
| DVB-T | |
| Input Frequency | 85~860 MHz |
| Bandwidth | 6/7/8 M |
| DVB-S | |
| Input Frequency | 950~2150MHz |
| Symbol rate | 2-45Msps |
| Signal Strength | - 65- -25dBm |
| Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| DVB-S2 | |
| Input Frequency | 950~2150MHz |
| Symbol rate | QPSK 1~45Mbauds;8PSK 2~30Mbauds |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Output | |
| IP TS | |
| 48*SPTS over UDP, RTP/RTSP.100Base-T Ethernet interface (unicast / multicast) | |
| System | |
| Local interface | |
| Indicator light | |
| Remote management | |
| NMS Management | |
| Language | |
| English |
