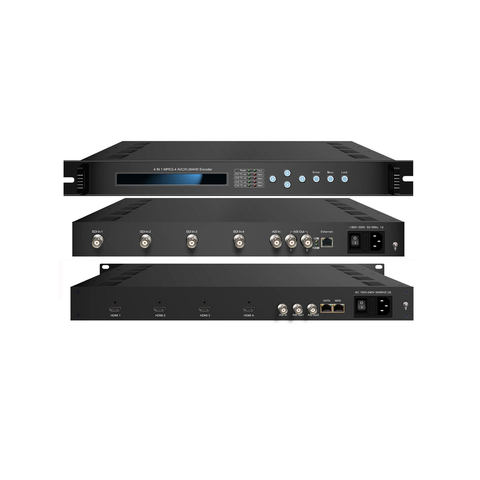

Digital TV H264 UDP Multicast HD SDI Input ASI Output Encoder
Short Description:
| Input | |
| 4x SDI input | SNK6092A-SDI |
| 4x HDMI input | SNK6092A-HDMI |
| Video | |
| Resolution | 1920*1080_59.94P, 1920*1080_50P |
| Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 |
| Bit-rate | 0.8Mbps~19Mbps (each channel) |
| Rate Control | CBR, VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening |
| Audio | |
| Encoding | MPEG-1 Layer 2, HE-AAC(V2), LC-AAC |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64Kb/s~384Kb/s each channel |
| Multiplexing | 1×ASI input multiplexed and 4 encoding channel SPTS |
| output | 2×ASI outputs, BNC interface |
| System | LCD/keyboard operating, net manager (SNMP) Chinese-English control interface |
| General | |
| Dimensions (W×D×H) | 440mm×410mm×44.5mm |
| Approx weight | 4Kg |
| Temperature range | 0~45℃(work), -20~80℃(Storage) |
| Power Requirements | AC 110V±10%, 50/60Hz; AC 220V±10%, 50/60Hz |
| Power consumption | 25W |
