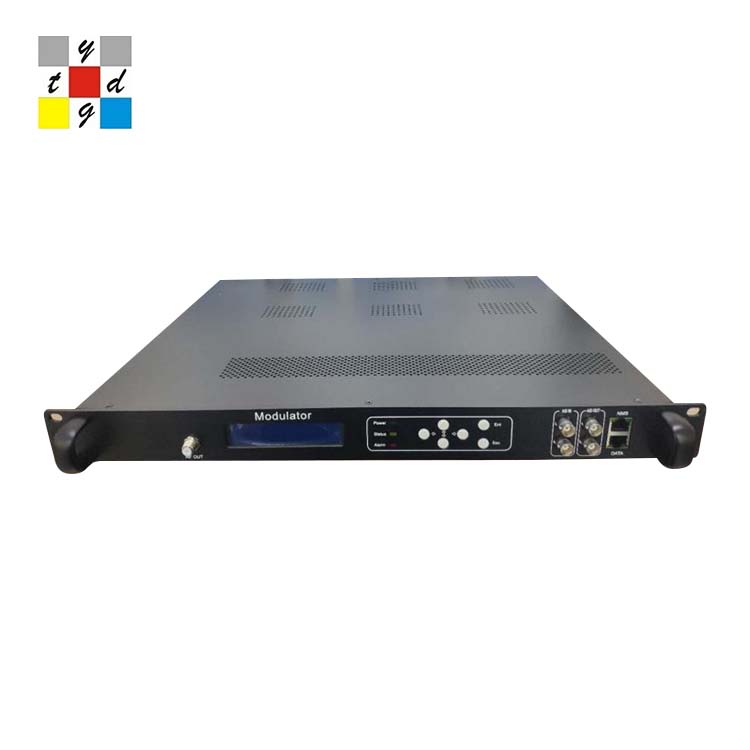

wholesale 16 in 1 h.264 isdb-t 12 16ch cctv analog to ip video encoder modulator
Short Description:
| Input | 8HDMI inputs |
| 1×ASI input, BNC interface | |
| Video | |
| Resolution | 1920×1080_60p 1920×1080_50p |
| 1920×1080_60i, 1920×1080_50i | |
| 1280×720_60p, 1280×720_50p | |
| 720x576_50i, 720x480_59.95i | |
| Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD |
| Bit-rate | 0.8Mbps~19ps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening |
| Audio | |
| Encoding | MPEG-1 Layer 2, HE-AAC,LC-AAC |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64Kb/s~384Kb/s each channel |
| Multiplexing | Multiplex 1ASI input and 8 channels hd encoding programs |
| Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream. |
| IP out MPTS, PTS, unicast, multicast, support IP out null packets filter.RF Out(DVB-C: carriers; DVB-T: carriers ISDB-T) | |
| System function | LCD/keyboard operating, network management(SNMP), English control interface |
| Ethernet software upgrade | |
| General | |
| Dimensions(W×D×H) | 482mm×455mm×44.5mm |
| Approx weight | 3.2 |
| Temperature range | 0~45℃(Operating), -20~80℃(Storage) |
| Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Power consumption | 25W |
