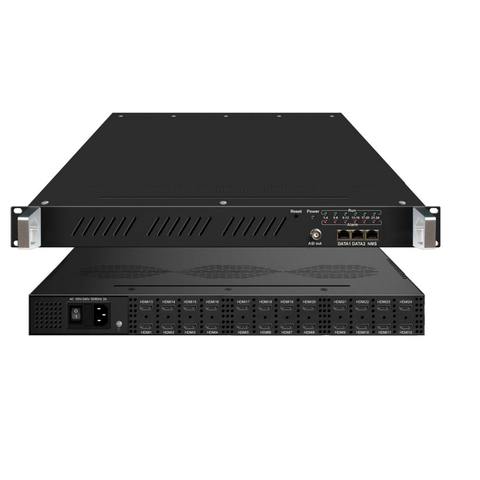

8 IN 1 MPEG4 AVC H.264 HD Video Encoder
Short Description:
| SNK6322K | |
| SNK6322KF | SNK6322L |
| Chipset | |
| Vixs | |
| Fujitsu | Hisilicon |
| Video Channel | |
| 2/4/6/8/10/12×HDMI optional | |
| 4/8/12/16/20/24×HDMI optional | 4/8/12/16/20/24×HDMI optional |
| Video Encode | |
| MPEG2 & MPEG4 AVC/H.264 | |
| MPEG-4 AVC/H.264 | MPEG-4 AVC/H.264 |
| CC Input | |
| 12 CC input ports | |
| N/A | N/A |
| IP Input | |
| 32 ×IP | |
| 32× IP | N/A |
| Video Bit Rate | |
| 0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding | |
| 0.8~19Mbps each channel | 1Mbps~13Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
| GOP | |
| GOP B Frame: 0-3, GOP P Frame: 0-6 | |
| IBBP | GOP Size=25 (without B Frame) |
| Resolution | |
| Up to 1080p-60 (Resolution and frame rate downscale convertion) | |
| Up to 1080p-60 (1080i/720p to 576p/480p downscale conversion) | Up to 1080P-30 (1080i/p-60/50 to 1080p-30/25 auto downscale convertion) |
| Audio Encode | |
| MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 pass through | |
| MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional) AC3 pass through | MPEG-1 Layer II |
| Audio Gain | |
| Yes | |
| Yes | Yes |
| OSD Function | |
| N/A | |
| N/A | Yes |
| ASI output | |
| Yes | |
| Yes | Option as required |
| IP output | |
| SPTS and 1MPTS | |
| SPTS and 1MPTS | SPTS and 1MPTS(for 4/8/12 channel) SPTS or 1MPTS(for 16/20/24 channel) |
