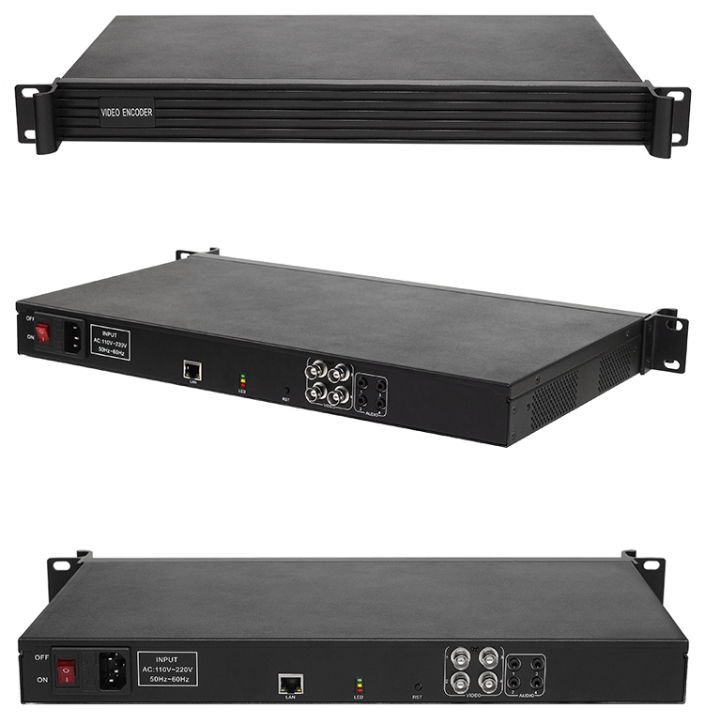

Hotel IPTV System Converter AV to IP DVB Encoder HD H.264
Short Description:
| Model | SNK-6282B CVBS encoder |
| Input | 4ch CVBS |
| Output | 1 channel IP signal output. 1 RJ 100M / 1000M,Main TS stream and Sub TS stream, dual-stream. |
| Video | |
| Input resolution | 960*576i/960*480i/720*576i /640*480i |
| Coding level | H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 320*180~960*576(Can customize) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 30/60 |
| OSD | Character, images |
| Audio | |
| Input selection | 4 channel embedded audio hdmi, Support audio gain |
| Audio coding | AAC/MP3 |
| Audio bit rate | 24Kb/s~96Kb/s |
| Sampling rate | 32000,44100 |
| IP Output | 1 RJ45 1000M adaptive Ethernet port, TS stream standard, ONVIF protocol |
| System | |
| Network protocol | Support HTTP,RTSP,RTMP,UDP .multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| Generally | |
| Power supply | 220V |
| power consumption | <40W |
| Size | 300mm x 440mm x 43mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 3.5 KG |
