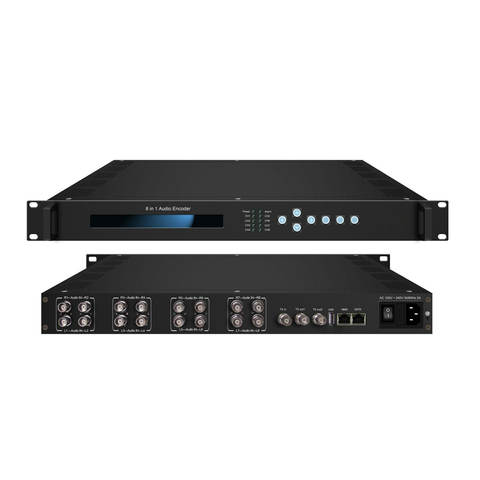

TV Station Equipment Audio to IP Converter Audio Encoder Hardware
Short Description:
| Audio Encode | |
| Interface | 8 pairs of unbalanced stereo / 16 mono audio inputs, BNC interface |
| Encoding Format | MPEG1 Layer 2 |
| Audio Gain | -20 ~ +6dB |
| Sampling Rate | 48KHz |
| Bit-rate | 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel) |
| Stream output | 2*ASI output, BNC interface |
| System | LCD/keyboard operating, web-based NMS manage |
| Miscellaneous | |
| Dimension | 482mm×455mm×44mm (W× L× H) |
| Approx weight | 4kg |
| Temperature | 0~45℃ (work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
| Consumption | 25W |
