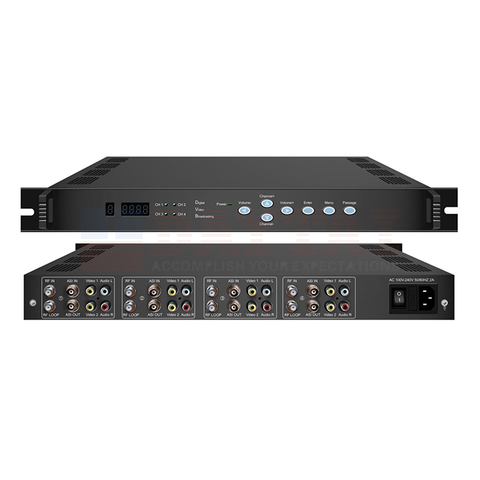

4 DVB-S IRDs and 4 TS decoders FTA Satellite Receiver with MPEG-2 TS Decoder DVB-S Tuner input IRD
Short Description:
| Item | |
| Specification | |
| ASI Input | |
| 4×BNC interface | |
| Tuner Input | |
| Interface | |
| 4×input, 4×loop through output | |
| Input Level | |
| -65～-25dBm | |
| Input Frequency | |
| 950~2150MHz | |
| Symbol Rate | |
| 2-45Msps | |
| FEC Code Rate | |
| 1/2, 2/3, 3/4, 5/6, 7/8QPSK | |
| Video OUT | |
| 4×2 CVBS (RCA interface) | |
| Audio OUT | |
| 4×Stereo Audio (L/R) | |
| ASI OUT | |
| 4×BNC interface | |
| Miscellaneous | |
| Dimension | |
| 44mm×482mm×410mm | 44mm×482mm×410mm |
| Temperature | |
| 0~45℃(Operating), -20~80℃(Storage) | 0~45℃(Operating), -20~80℃(Storage) |
| Power | |
| AC 90~220V, 50/60Hz, 25W | AC 90~220V, 50/60Hz, 25W |
