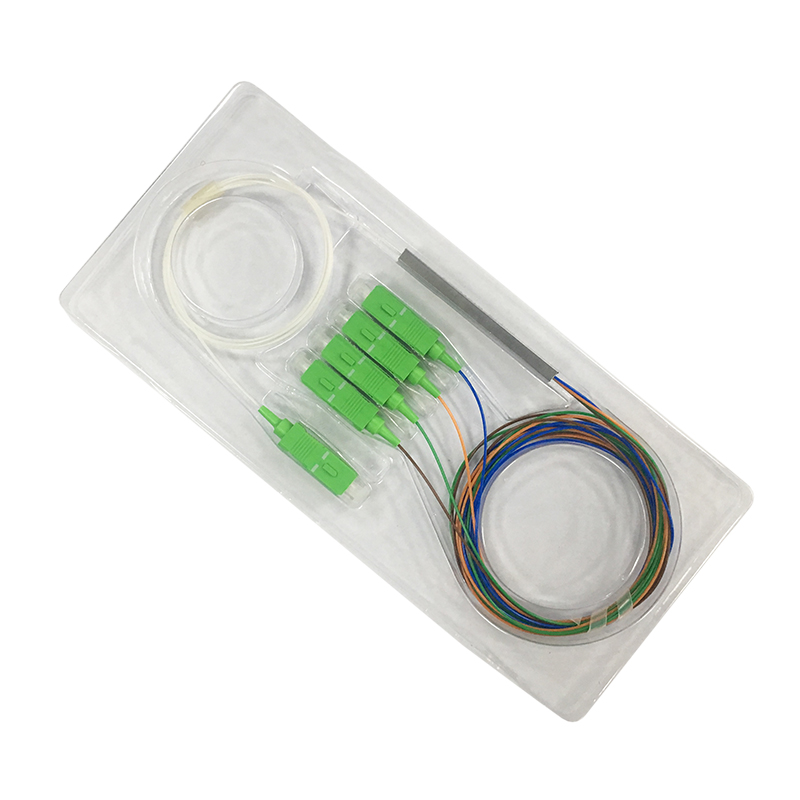

Mini Type 1x4 1x8 1x16 Single Mode Steel Tube PLC Splitter with SC APC Connector FTTH Optical Fiber optic Splitter
Short Description:
| Model Number | |
| 1x4 PLC | |
| 1x8 PLC | 1x16 |
| Type | |
| FTTx Solutions | |
| FTTx Solutions | FTTx Solutions |
| Application | |
| FTTH FTTB FTTX Network | |
| FTTH FTTB FTTX Network | FTTH FTTB FTTX Network |
| Connector Type | |
| SC APC | |
| SC APC | SC APC |
| Insertion Loss | |
| 7.5dB | |
| 10.2dB | 13.5dB |
| Return Loss | |
| ≥50dB | |
| ≥50dB | ≥50dB |
| Dimensions (H*W*L)(nm) | |
| 60*7*4 | |
| 60*7*4 | 60*12*4 |
| Package | |
| Carton Box | |
| Carton Box | Carton Box |
| Working Temperature | |
| -40~85℃ | |
| -40~85℃ | -40~85℃ |
| Storage Temperature | |
| -40~85℃ | |
| -40~85℃ | -40~85℃ |
| Color | |
| White | |
| White | White |
| Operating Wavelength | |
| 1260-1650mm | |
| 1260-1650mm | 1260-1650mm |
| Certification | |
| RoHS | |
| RoHS | RoHS |
