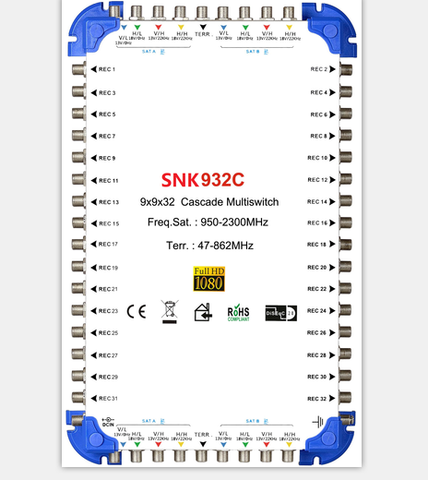

8 SAT+1Terr. up to 32 Receiver satellite channels 9 in 32 out Cascade Multiswitch
Short Description:
| Model | |
| Unit | |
| SNK932C | |
| Inputs/Outputs | |
| / | |
| 8 Sat.,1 Terr./8 Sat.1 Terr. | |
| Outputs/Subscribers | |
| / | |
| 32 | |
| Frequency | |
| Sat. | |
| MHz | |
| 950-2250 | |
| Terr. | |
| MHz | |
| 47-862(ODM:5-862) | |
| Sat.loss(Trunk) | |
| dB | |
| 9 | |
| Terr.Loss(Trunk) | |
| dB | |
| 4 | |
| Sat.loss(Tap) | |
| dB | |
| 2 | |
| Terr.Loss(Tap) | |
| dB | |
| 3 | |
| Switching Isolation | |
| dB | |
| 28 | |
| Trunk Isolation | |
| dB | |
| 32 | |
| Isolation (Tap)(Sat.) | |
| dB | |
| 30 | |
| Isolation (Tap)(Terr.) | |
| dB | |
| 25 | |
| Rejection | |
| dB | |
| 28 | |
| Return Loss | |
| In | |
| dB | |
| 10 | |
| Out(Trunk) | |
| dB | |
| 10 | |
| Out(Tap) | |
| dB | |
| 8 | |
| Sat.Output level(IMA3-35dB)(Tap) | |
| dBµV | |
| 100 | |
| Terr.Output Level(IMA3-35dB)(Tap) | |
| dBµV | |
| 85 | |
| Power Supply | |
| Vac/Hz | |
| 90-260/47-63 | |
| Max.Current to LNB | |
| mA | |
| 1200 | |
| Ambient temperature | |
| ℃ | |
| (-20)-(+50) | |
| Dimension | |
| MM | |
| 218*345*50 |
