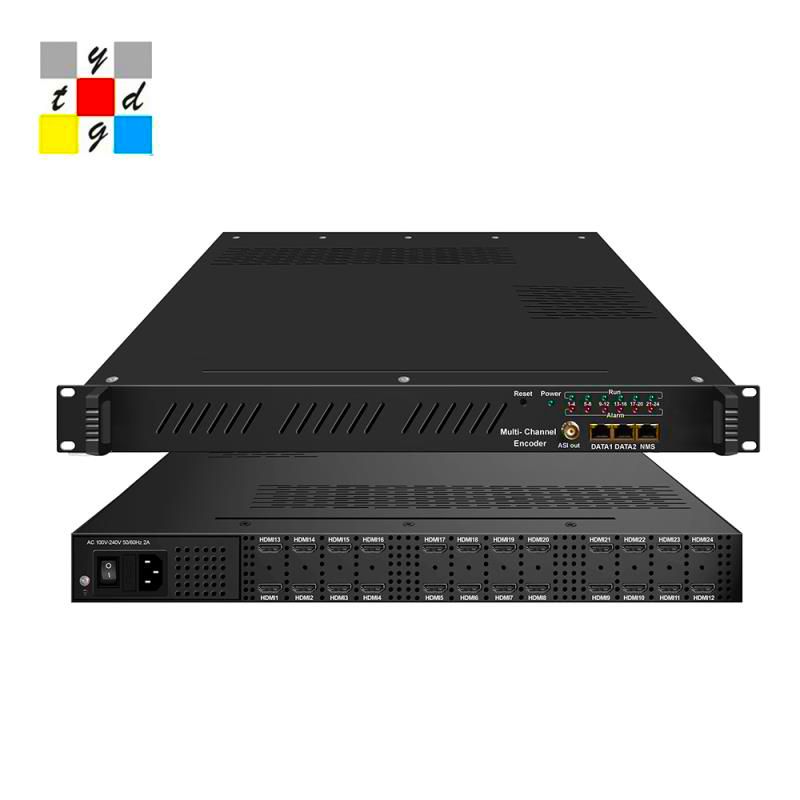

hot sell switcher wifi wireless 4g streaming server video encoder modulator
Short Description:
| Input | 8/12/16/20/24 HD inputs |
| Video | |
| Resolution | |
| input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
| output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | 1~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Audio | |
| Encoding | MPEG-1 Layer 2 |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Audio Gain | 0-255 Adjustable |
| Bit-rate | 64/128/192/224/256/320/384Kbps |
| Multiplexing | |
| Maximum PID Remapping | 180 output pids per channel |
| Function | PID remapping ( automatically or manually) |
| Stream output | ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol (8/12 HD inputs with 8/12 SPTS and 1MPTS output 16/20/24 HD inputs with 16/20/24 SPTS or 1MPTS output ) |
| System function | Network management(WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 482mm×410mm×44mm |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
