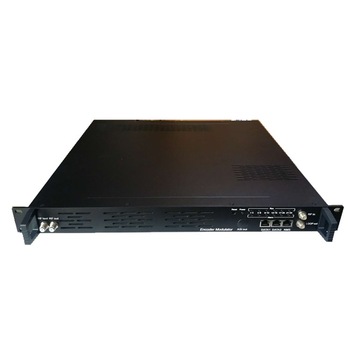

High Profile HD INPUT dvb c dvbt isdbt DTMB RF encoder modulator
Short Description:
| Input | 8/16/24 HDMI inputs for option 1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45 |
| Video | |
| Resolution | |
| Input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, |
| Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | 1Mbps~13Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IP…P (P Frame adjustment, without B Frame ) |
| Audio | |
| Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Audio Gain | 0-255 Adjustable |
| MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
| HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps |
| Multiplexing | |
| Maximum PID Remapping | 255 input per channel |
| Function | PID remapping ( automatically or manually) |
| Modulation | |
| DVB-T | |
| Standard | EN300744 |
| FFT mode | 2K,4K, 8K |
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| MER | ≥42 dB |
| RF frequency | 50~960MHz, 1KHz step |
| RF out | 8 non-adjacent carriers output (maximum bandwidth 192MHz) |
| RF output level | -20~ +3dBm, 0.1db step |
| Stream output | 1 ASI output as mirror of one of RF output carriers(Optional) 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T carriers 1*1000M Base-T Ethernet interface, GE port |
| System function | Network management (WEB) |
| Miscellaneous | |
| Dimension (W×L×H) | 482mm×328mm×44mm |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
