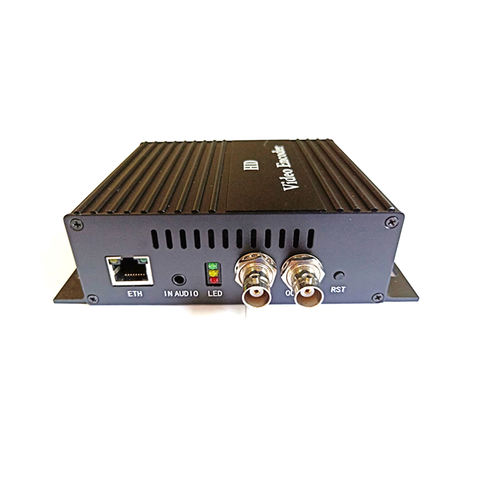

Football Game Live IPTV H.264 H.265 SDI Encoder
Short Description:
| Product model | HD SDI encoder |
| Input | 1 SDI input, 1 3.5MM channel audio input |
| Output | 1 channel IP signal output |
| Video | |
| Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480iAnd other conventional resolution |
| Coding standard | H.265/H.264 |
| Coding level | H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 640*360~1920*1080(Can customize) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 30 |
| OSD | Character, images |
| Audio | |
| Input selection | 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain |
| Audio coding | AAC/MP3/G711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP, UDP, multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| The common use | |
| Power supply | 12V~2A |
| power consumption | 5W |
| Size | 103mm * 70mm * 25mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.18KG |
