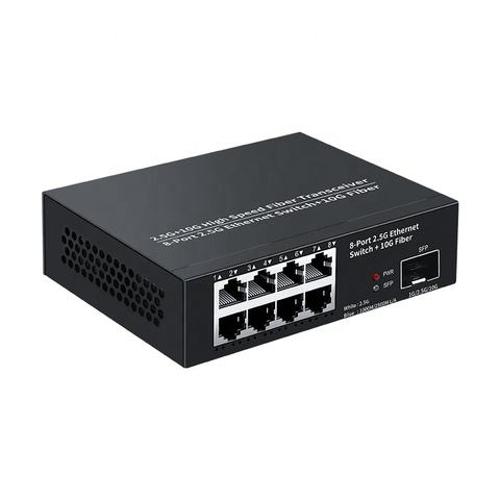

8 Port 2.5GbE Switch,10G SFP+ Slot,60G Bandwidth, Home Lab Unmanaged Switch Plug and Play 2.5g Network Switch
Short Description:
| Power | DC 2.1 |
| Ethernet | 8*2.5G RJ45 ports1*10G SFP ports |
| bandwidth | 60Gbps |
| Packet forwarding rate | 44.64Mpps |
| MAC Address | 4K |
| Jumbo frame | 12Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hours |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab(Gigabit Ethernet)IEEE 802.3bz(5G Ethernet)IEEE 802.3z(Gigabit Ethernet)IEEE 802.3ae(10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD),EN61000-4-5(Surge) |
| Network medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)100Base-TX: Cat5 or higher UTP/STP(≤100m)1000Base-TX: Cat5 or higher UTP/STP(≤100m)) |
| Optical fiber medium | Multimode optical fiber: 50/125, 62.5/125, 100/140umSingle-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Safety certification | CE,FCC,RoHS |
| Working environment | Operating temperature: -10~50°CStorage temperature: -40~70°COperating humidity: 10%~90%, no condensationStorage humidity: 5%~90%, no condensation |
| PWR(Power indicator) | Steady on: The power supply is normalOff: No power is on |
| 1-8 Network port greenindicator | Steady on: The 2.5G link is properly connectedOff: The link is unavailableShiny: Data transfer |
| 1-8 Network port yellowindicator | Steady on: The 10/100/1000M link is properly connectedOff: The link is unavailableShiny: Data transfer |
| Structural dimension | Product size: 190*100*28mmPackage size: 245*190*60mmProduct weight: 0.49KGPacking weight: 0.71KG |
| Operating voltage | Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A |
| Packing list | 1. Switch 1pcs,2. Specification 1pcs,3. Certificate of qualification 1pcs,4. Power adapter 1pcs |
