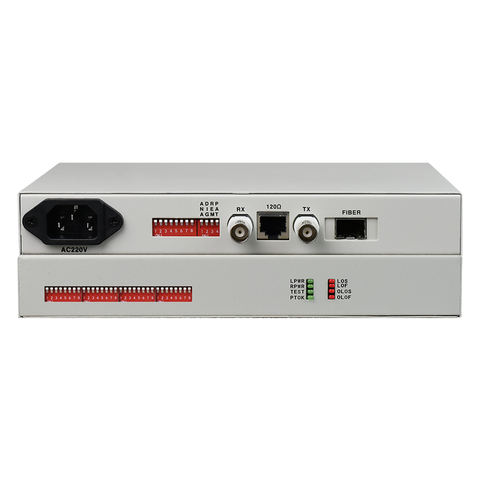

Framed n*64Kbps E1 Fiber cable modem
Short Description:
| Fiber | |
| Multi-mode Fiber | 50/125um, 62.5/125um, Maximum transmission distance: 5KM 62.5/125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min) Link budget: 16dBm |
| Single-mode Fiber | 8/125um, 9/125um Maximum transmission distance: 40Km Transmission distance: 40KM 9/125um single mode fiber, attenuation (0.35dbm/km) Wave Length: 1310nm Transmitting power: -9dBm (Min) ~-8dBm (Max) Receiver sensitivity: -27dBm (Min) Link budget: 18dBm |
| E1 Interface | Interface Standard: comply with protocol G.703;Interface Rate: n*64Kbps±50ppm;Interface Code: HDB3; E1 Impedance: 75Ω (unbalance), 120Ω (balance); Jitter tolerance: In accord with protocol G.742 and G.823 Allowed Attenuation: 0~6dBm |
| Power | Power supply:AC180V ~ 260V;DC –48V;DC +24V Power consumption: ≤3W |
| Dimension | Product size : 216 X 138 X 31mm(W X D X H) Simple packaging : 274X193X84 mm ( W X D X H) Piece weight : 1.2KG |
| Working environment | Working temperature: -10°C ~ 50°C Working Humidity: 5%~95 % (no condensation) Storage temperature: -40°C ~ 80°CStorage Humidity: 5%~95 % (no condensation) |
